SD-BD-04-02/Rev.05/15-01-67

UNIVERSAL VIBRATING HORN (VH)
MULTI SOUND ELECTRONIC HORN (MEH)

Description

         Model MEH muti sound electronic horn have two warning functions which are LED lamp and selectable sound working together. The electronic horn offers an electronics design which produces a very loud, clear and variety of sound selection between warning sounds, alarm sounds and other sound to fit your application needs. Electronic horn with tightly sealed structure has excellent durability. Suitable for general alarm, vessels, heavy industry, and outdoor plant applications.

Features

     Complete assembled, rugged design

    Universal power supply from 24 VDC to 48 – 240 VAC/DC

    Low power consumption, only 5VA (maximum)

    Corrosion resistant finish (Epoxy Resin Color)

    Wide operating range: -10% to +10% of nominal input voltage

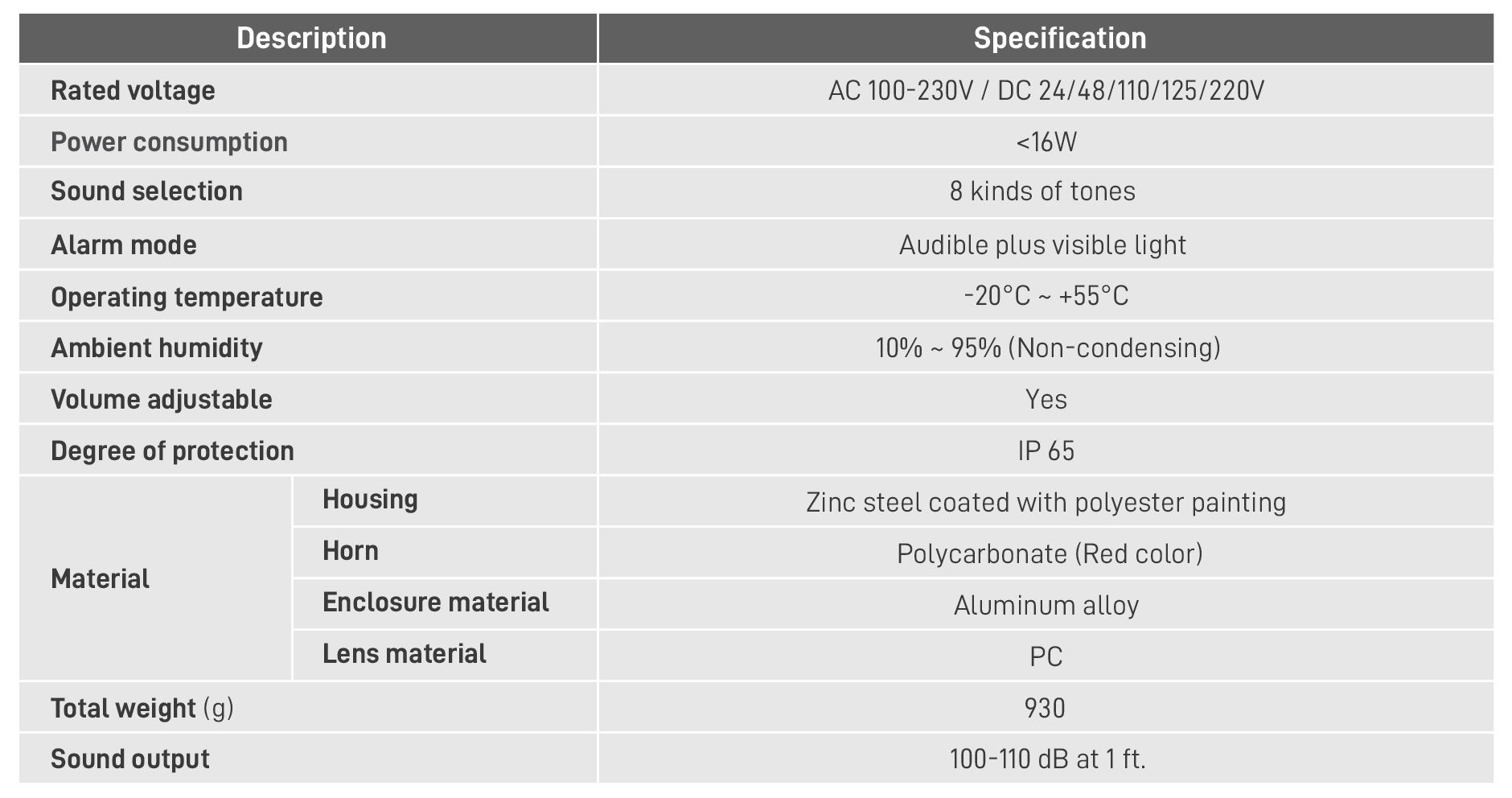

Technical Data

Dimension

Wiring Diagram

Wiring Diagram
