SD-BD-04-01/Rev.10/29-03-67

INTEGRATED LED TUBE (NIT8)
INTEGRATED LED TUBE (NIT8)

Description

          The integrated tube T8 (NIT8 series) (ultra – brightness LED) is use for lighting the control cubicle and all kinds of switchgear cubicles, long span of input supply voltage for both AC and DC supply. Resistant to high temperatures, high efficiency of power saving and environmental friendly. Suitable for ceiling, wall installation and general walkway.

Features

  LED chip epistar SMD2835
  Hi-bright luminous efficacy 80lm/Watt
  Correlated color temperature 6500k(Day Light)
  Color rendering >75RA
  Supply voltage input 130 ~ 265VAC (50/60Hz) or 185 ~ 365VDC
  Power factor >0.5

  Beam angle 125°
  Protection degree IP33
  No UV/IR and no mercury&lead
  Replace compact fluorescent 9 ~ 36 watt or incandescent 40 ~ 150 watt
   Approvals : CE, RoHSe

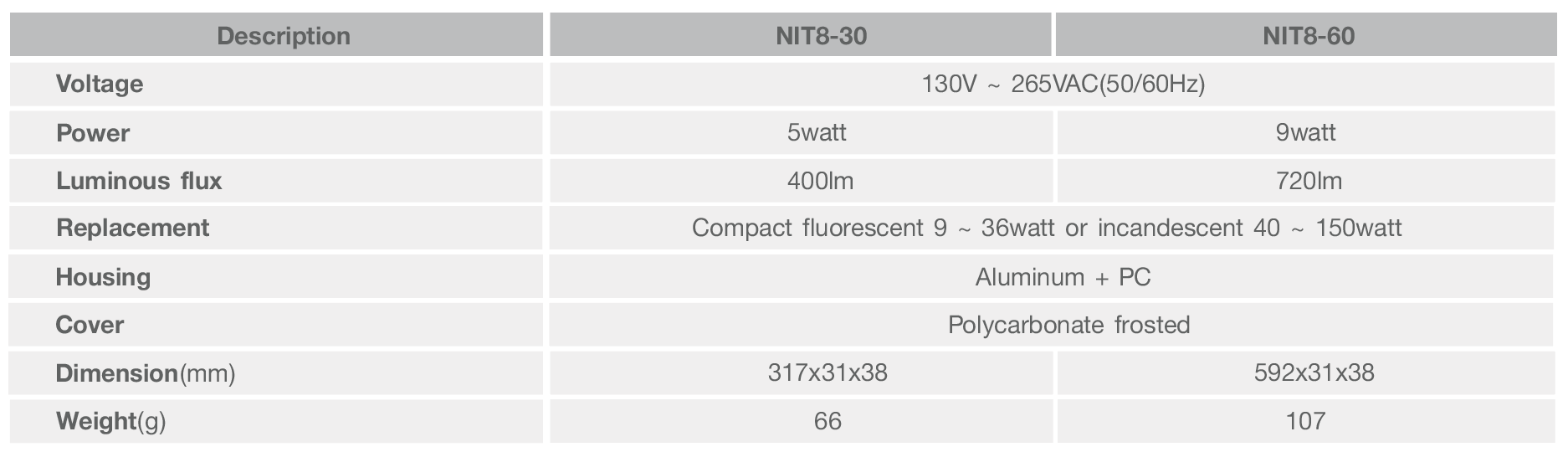

Technical data

Dimension
