SD-BD-04-01/Rev.10/29-03-67

SEMAPHORE INDICATOR (NSI)

Description

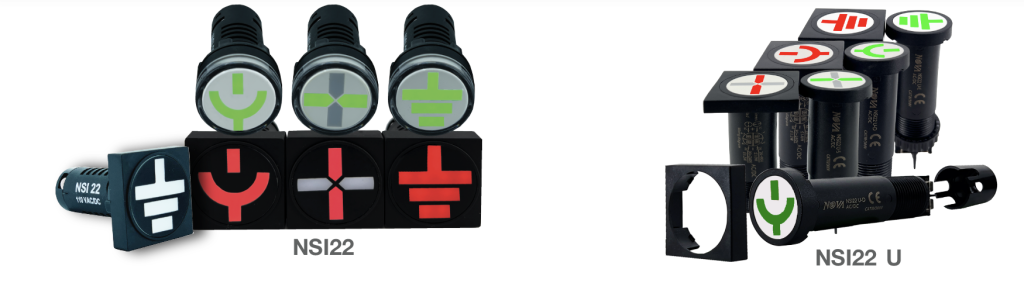

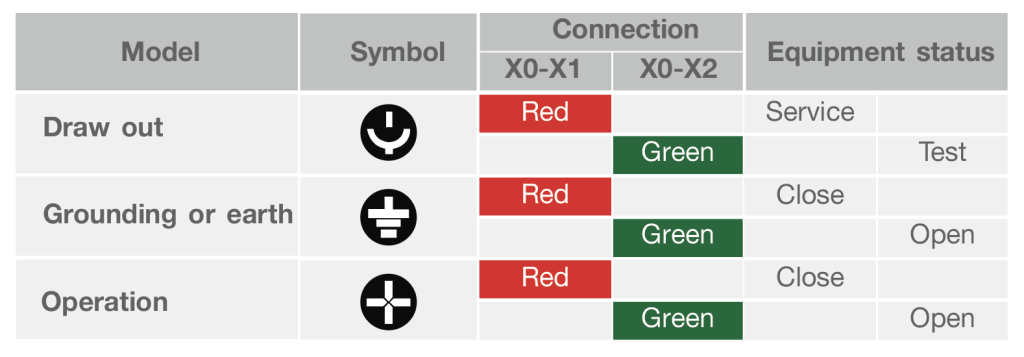

            NOVA LED semaphore indicator is used as a state indicator of the circuit breaker, disconnector or earthing switch. The indicator is mounted on the panel with mounting hole diameter 22.3 mm and operated by two color LED. The two colors are red and green, detail description is as below:

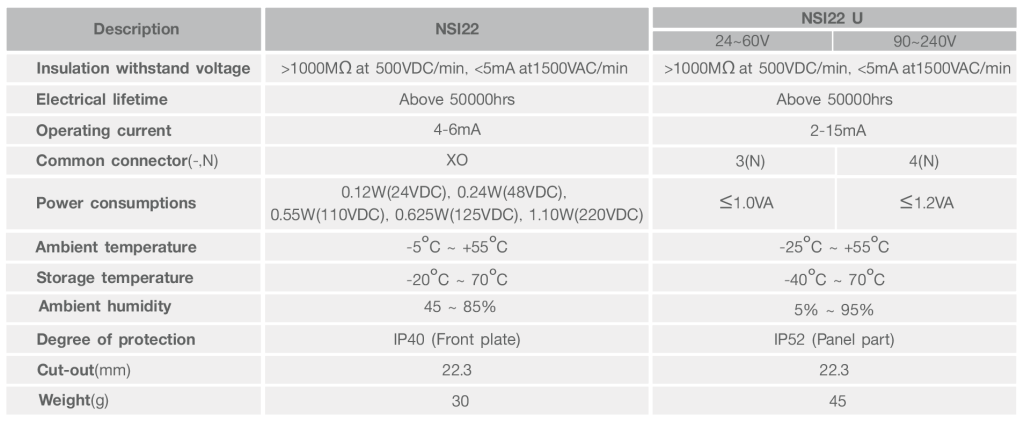

Technical data

Conform to standards IEC 60073 (Lamp colors) and IEC 60947-5

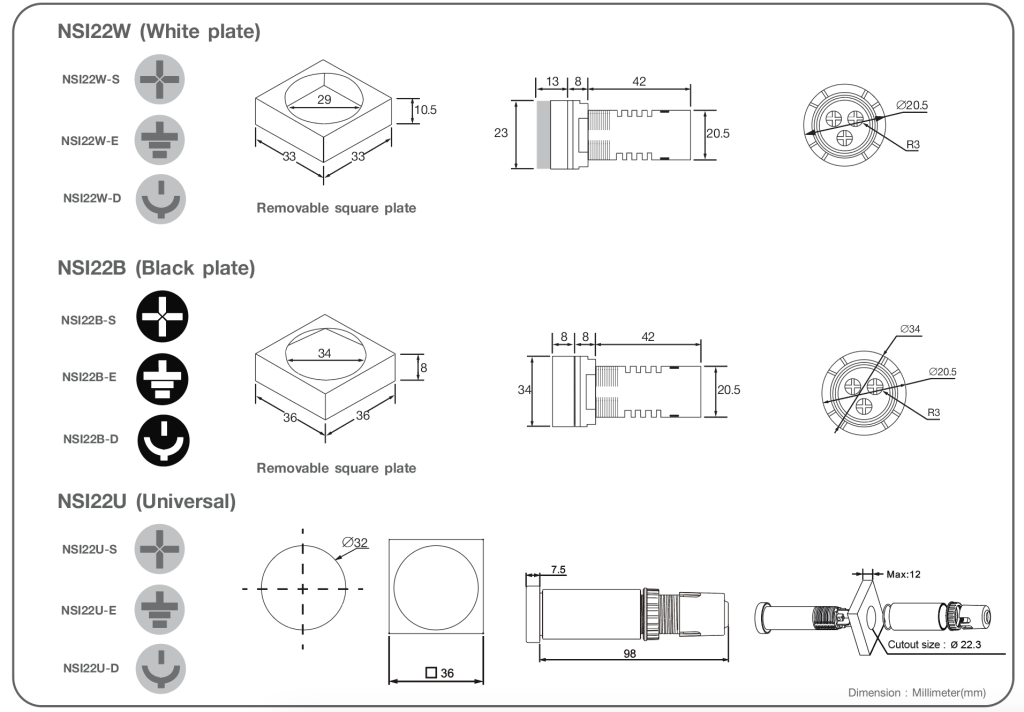

Dimension

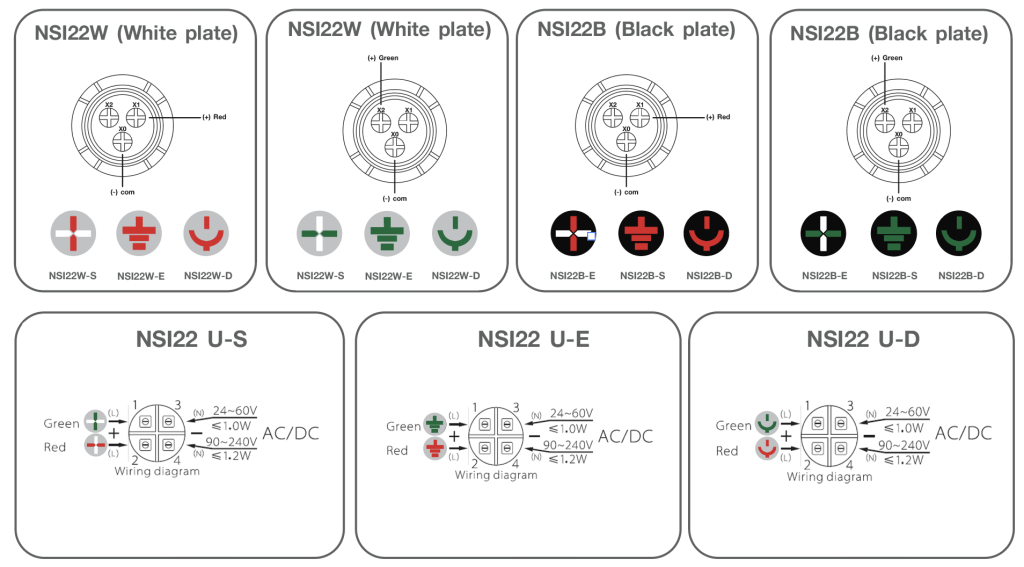

Wiring Diagram

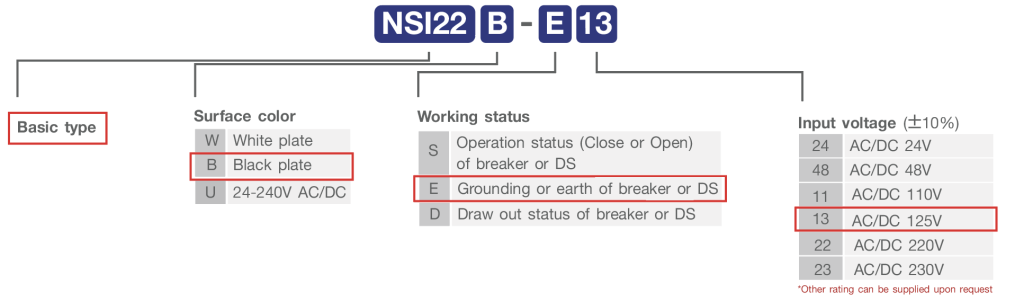

Product Coding
