SD-BD-04-01/Rev.10/29-03-67

UNIVERSAL OUT LET (NUO-S)

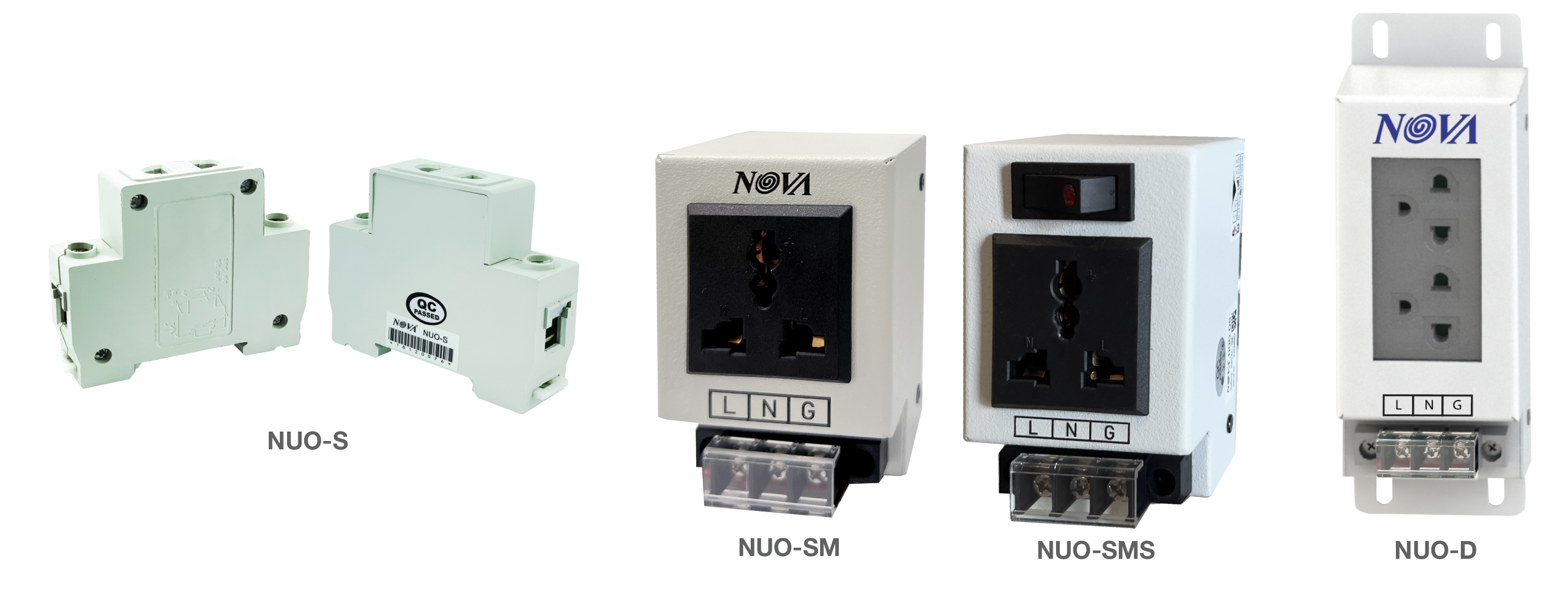

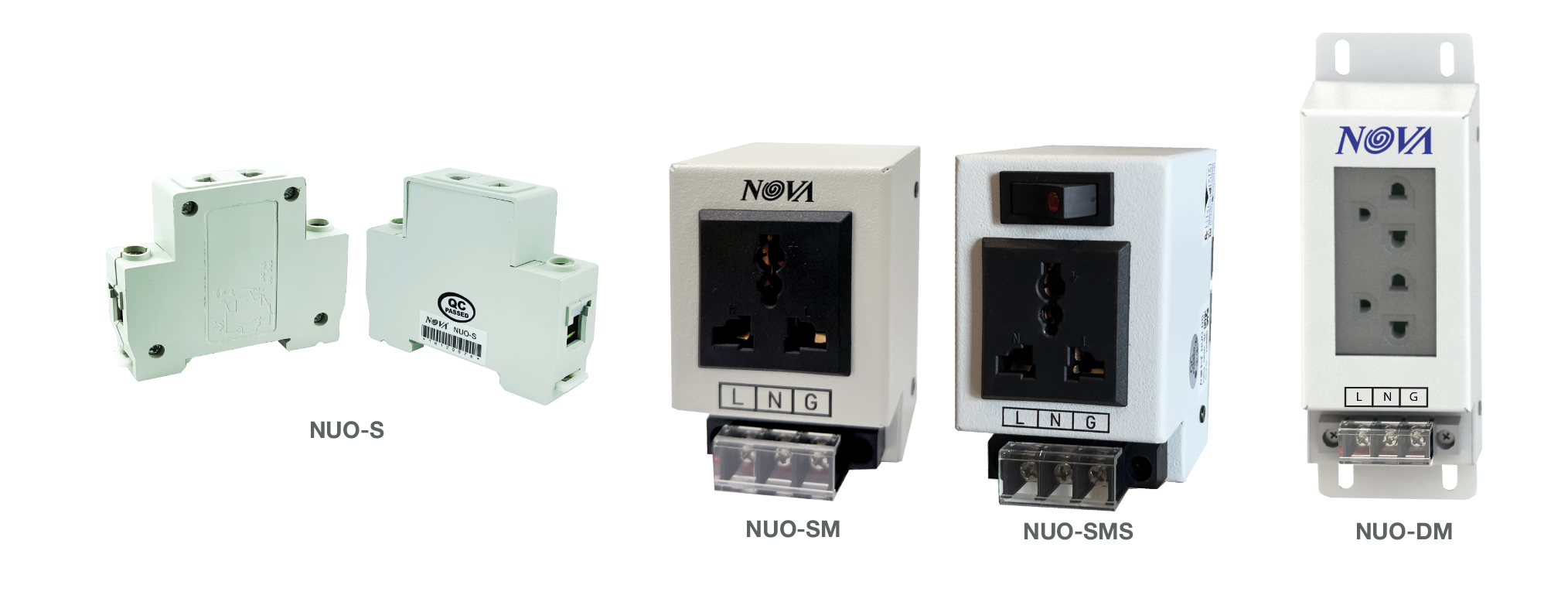

UNIVERSAL OUTLET (NUO)

Description

              Universal outlet is made of a high impact-resistant thermoplastic face for single outlet and rugged design with metal for Universal outlet with and without on-off switch. Ideal for mounting in cabinets where AC power is required, such as laptop computers, test equipment, electrical tools, etc.

Features

    Current rating 16A, 250VAC
    One piece design, easy installation
     DIN Rail 35mm. EN 50022 & direct mountable
    Finger safe connections, allow for increased safety during maintenanc

•     NUO-D : Weight 301g, NUO-DS : Weight 314g

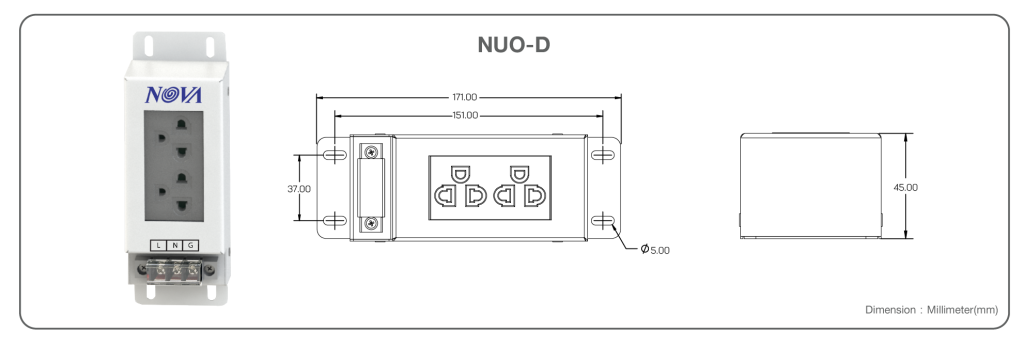

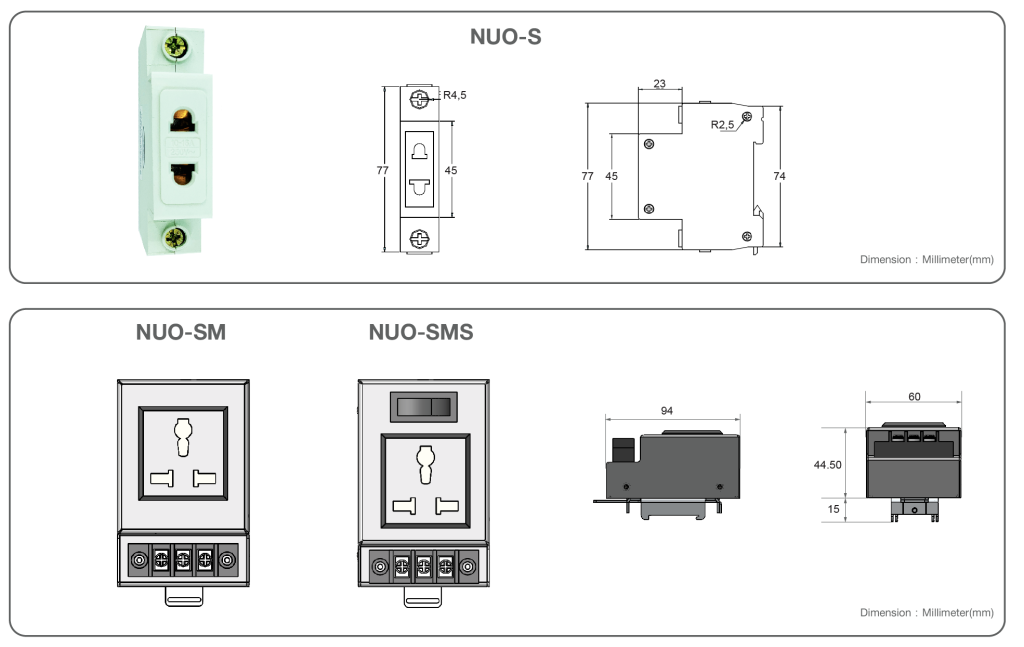

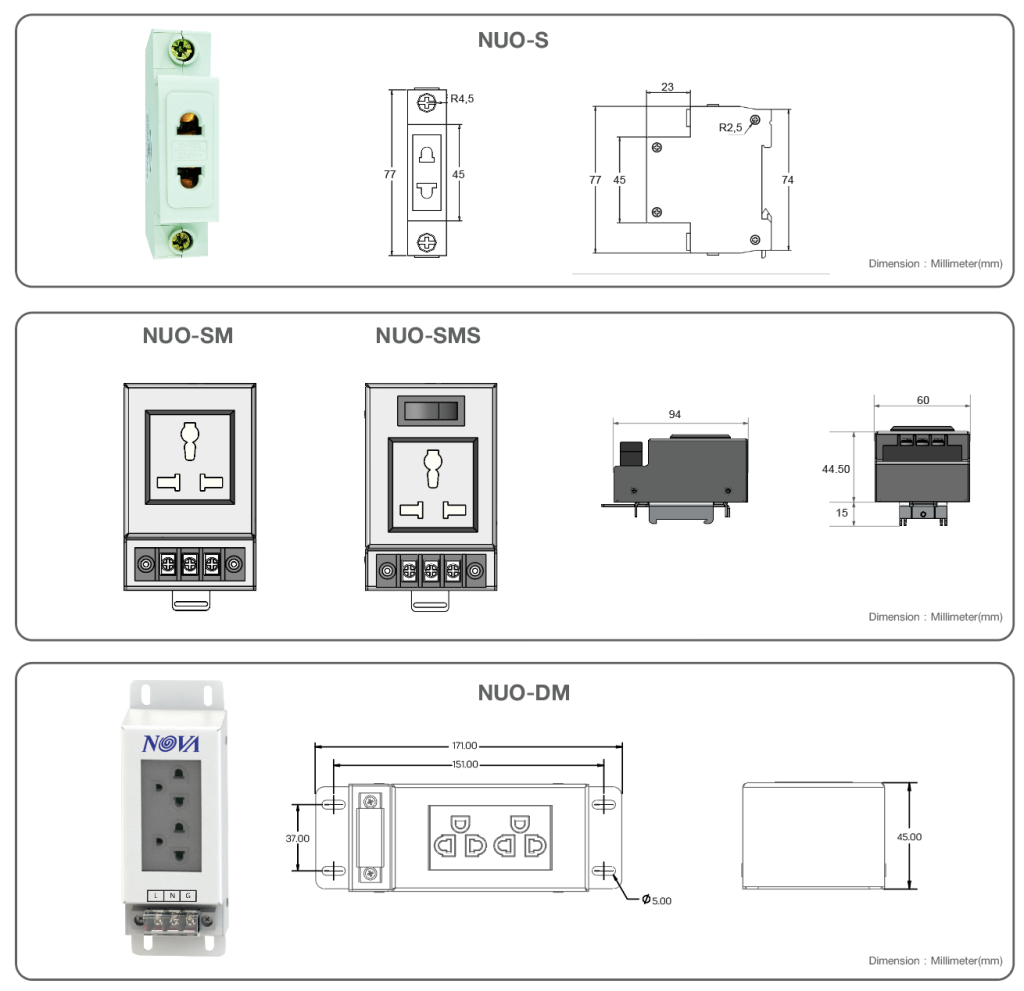

Dimension

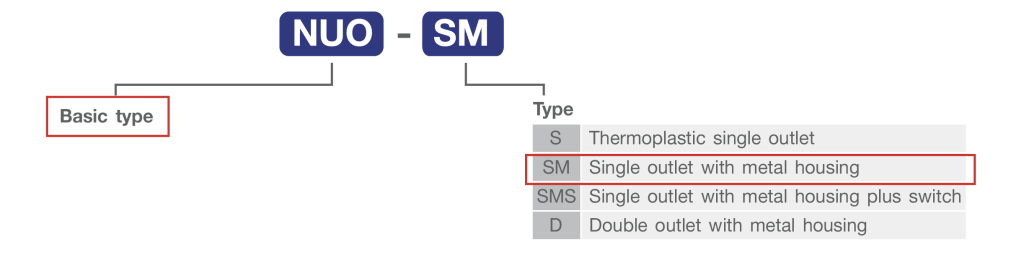

Product Coding
