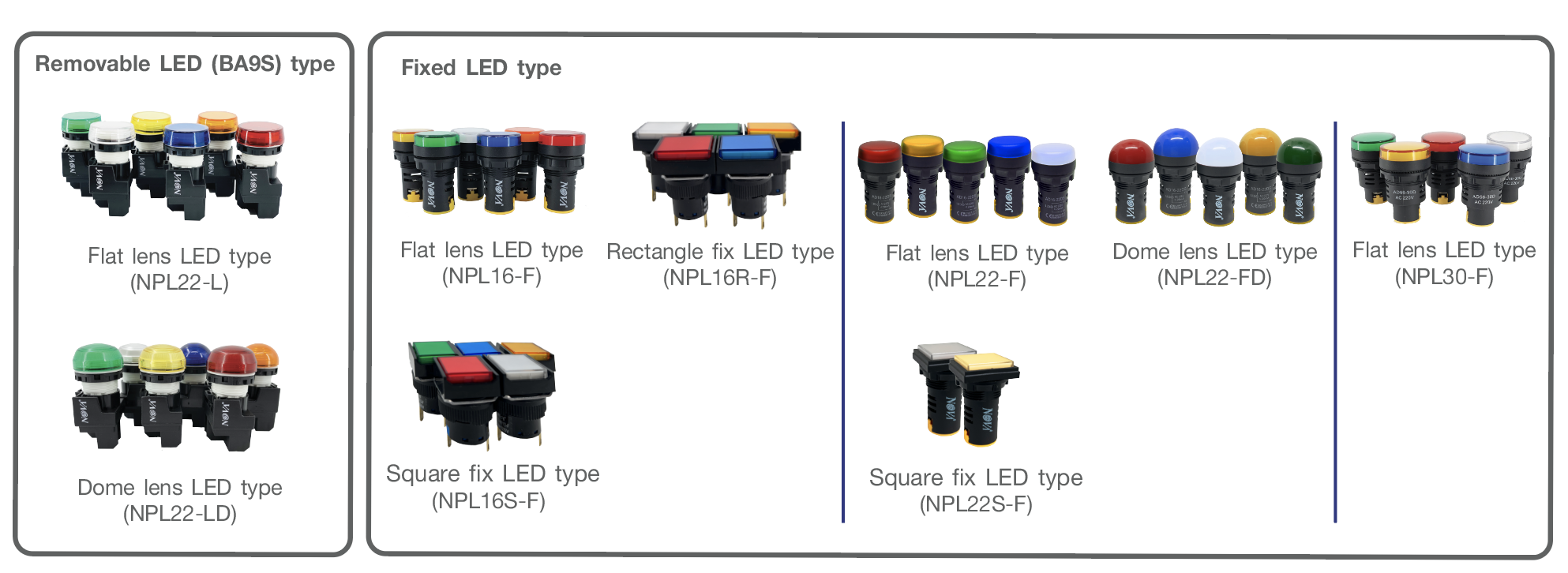

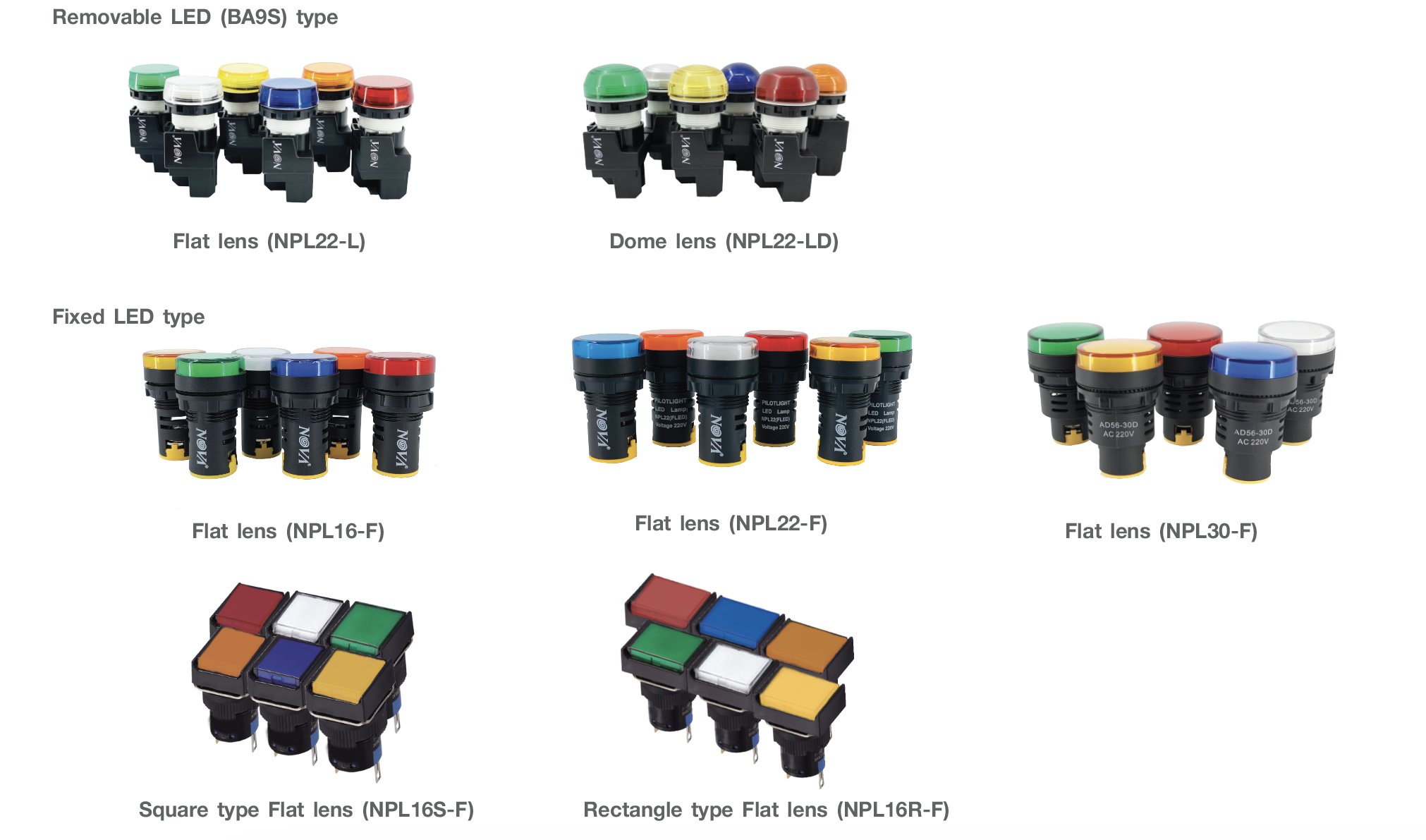

PILOT LIGHT (NPL)
Description
Pilot lights are panel mounted lamp assemblies consisting of the indicator housing, an internal LED lamp, terminal, and a lens. Applications include industrial control panels of all types, equipment indicator panels, status indicators and display lighting. The light source is high brightness pure color LED.
Features
• Unique Lens & bulb uniform body assures bright intensity, shock resistance, and oil tight construction.
• Full voltage up to 480VAC 50/60 Hz without bulky transformer
• High brightness LED chip technology with built in current-limiting resistor and zener diode
• Other voltage rating can be done upon request.

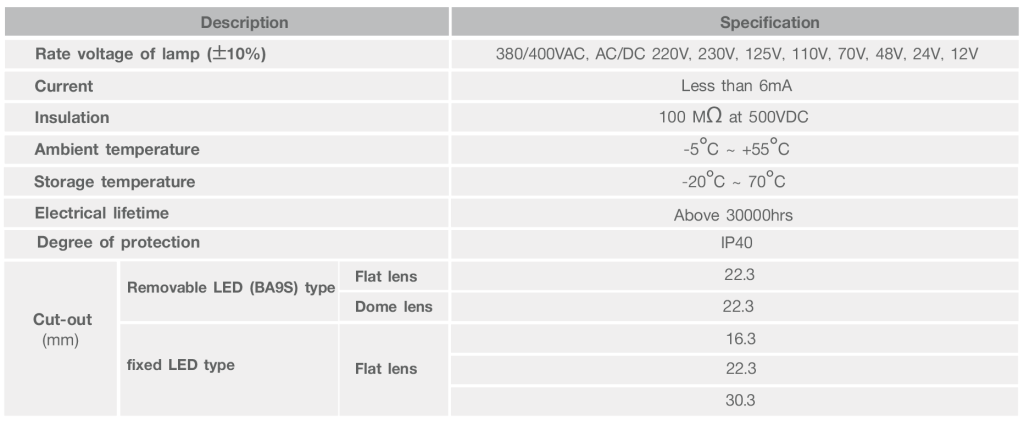

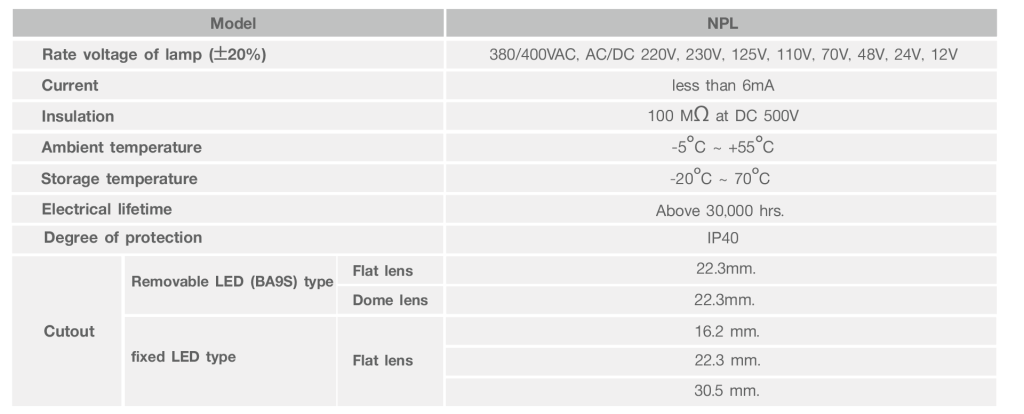

Specification
Conform to standards IEC 60947-5 and IEC 60073 (Lamp colors)

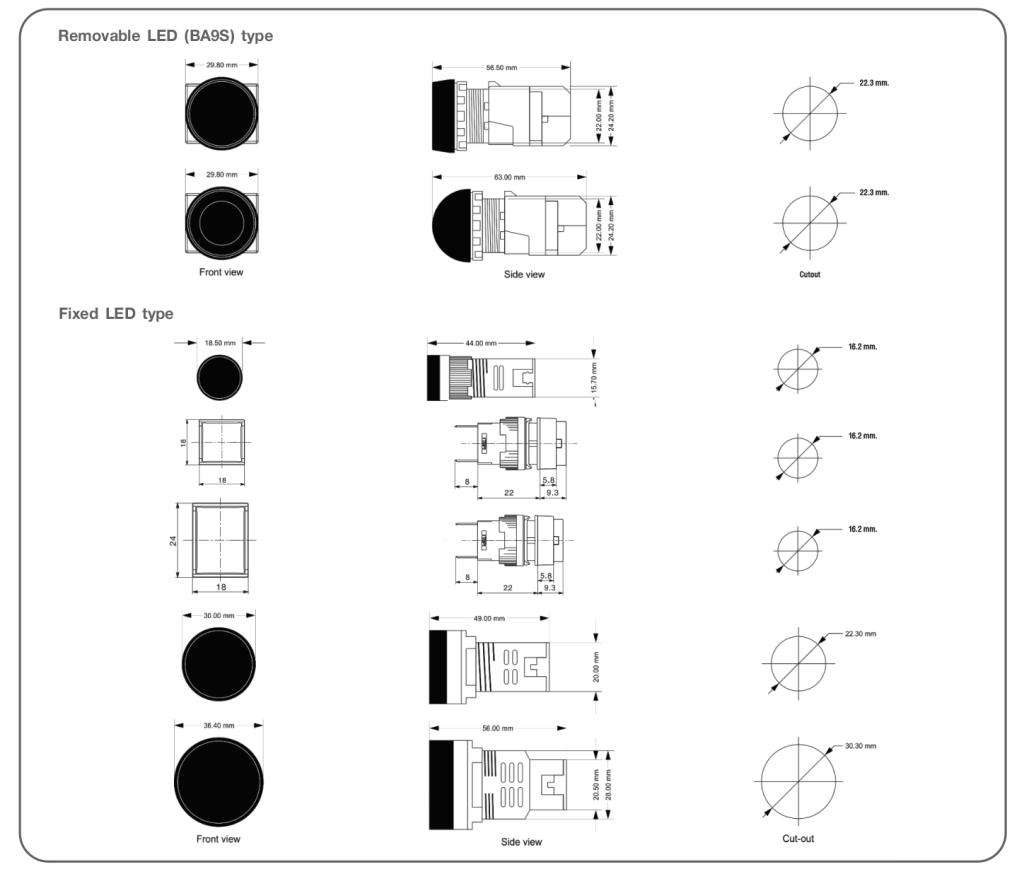

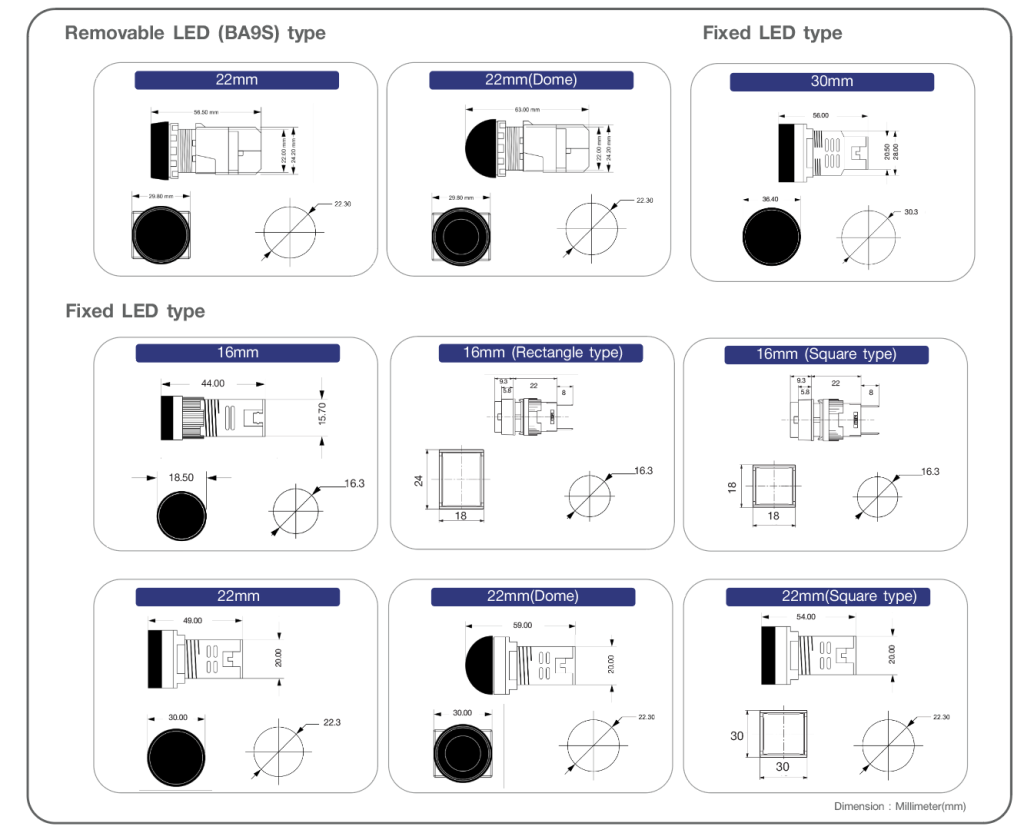

Dimension

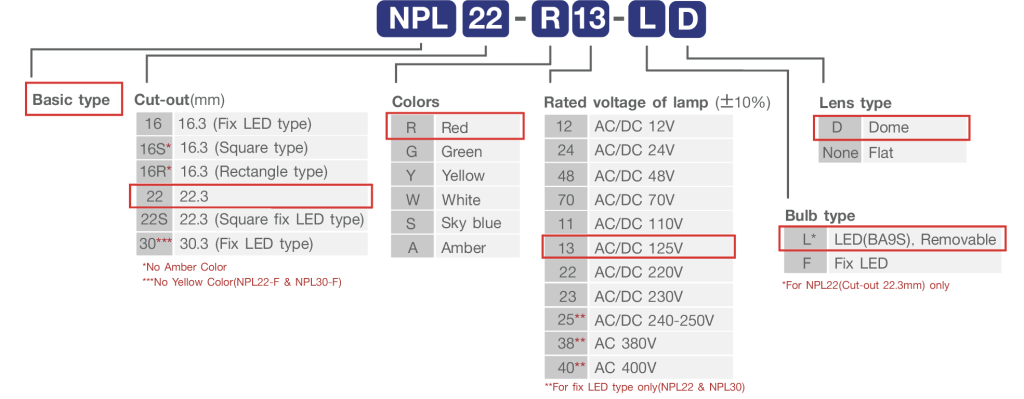

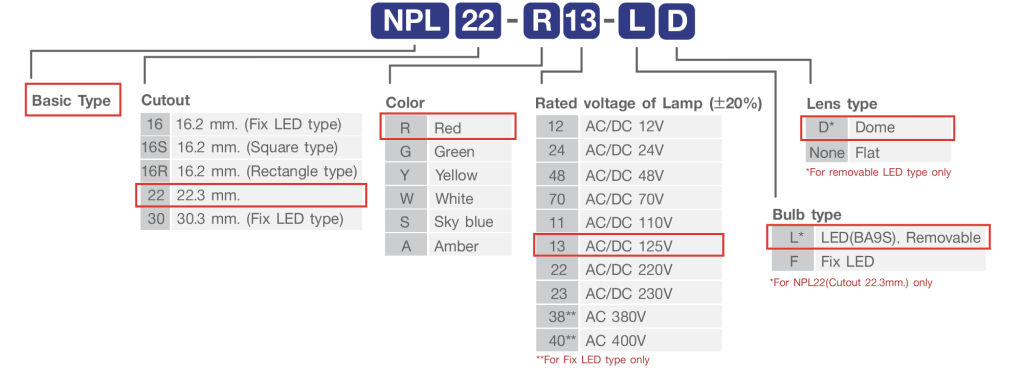

Product Coding
