LED SERVICE LAMP (NSL)
LED SERVICE LAMP (NSL)
Description
The LED service lamp (ultra – brightness LED) is use for lighting the control cubicle and all kinds of switchgear cubicles. Long span of input supply voltage for both AC and DC supply. Resistant to high temperatures, high efficiency of power saving and environmental friendly. Suitable for ceiling and wall installation.
Features
• LED chip Epistar SMD2835
• Hi – Bright luminous efficacy 65 lm/Watt
• Correlated color temperature 6,000k (Day Light)
• Color rendering >75RA
• Supply voltage input 85 ~ 265VAC (50/60Hz) or 120 ~ 365VDC
• Power consumption 7 watt, 11 watt (CFL)
• Luminous flux : 450, 570 lumen
• Power factor >0.5
• Beam angle 120°
• Protection degree IP65
• No UV / IR and no mercury & lead
• Life span 25,000 hrs

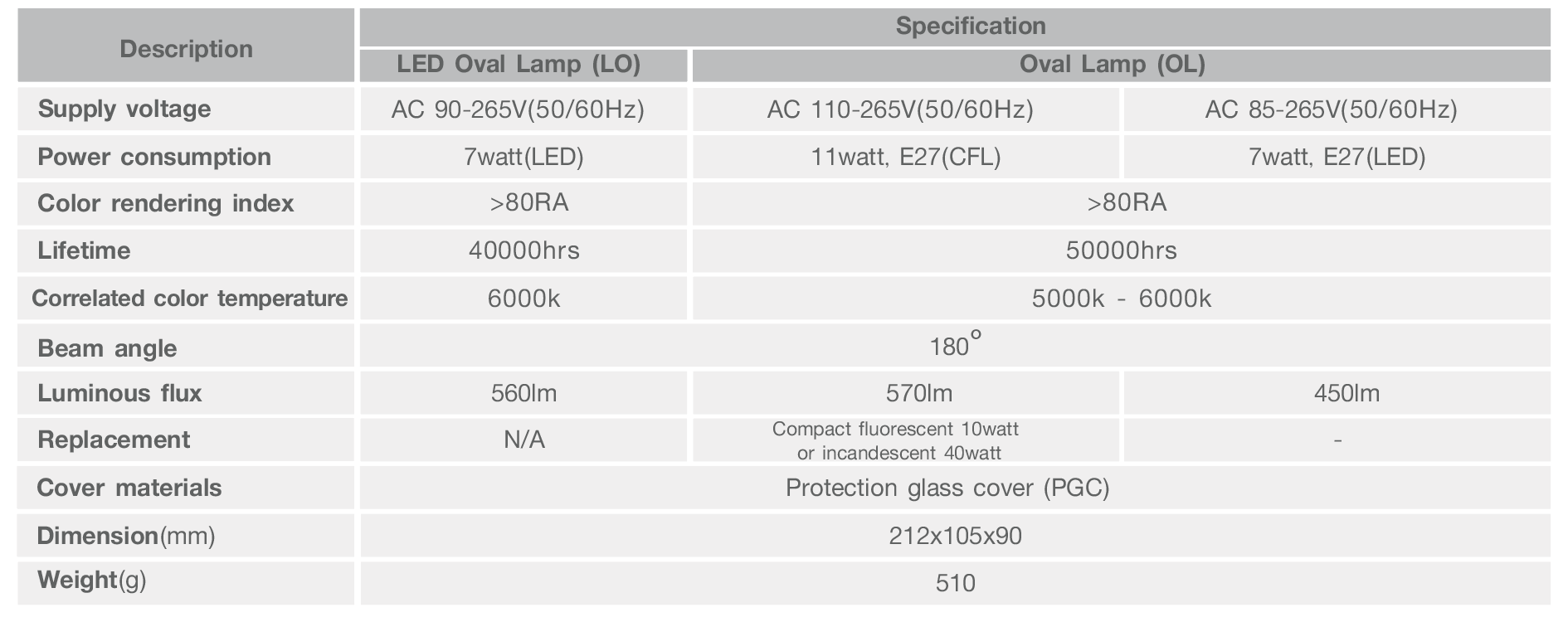

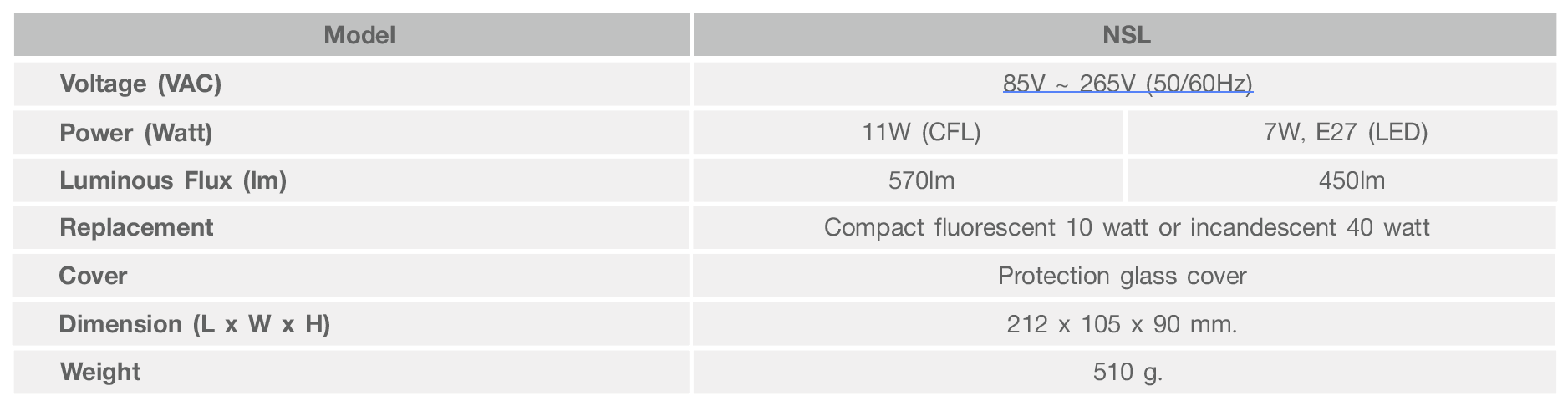

Specification
Dimension

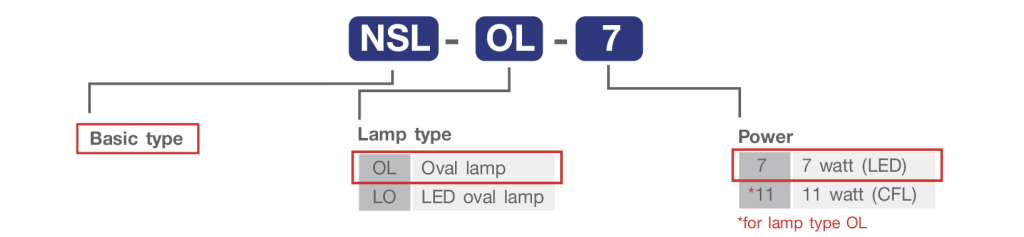

Product Coding
