SD-BD-04-03/Rev.10/27-02-69
ADJUSTABLE DC POWER SUPPLY
Description
The Adjustable DC Power supply adopts high frequency switching power technology. it is controlled by high
performance microcontroller. The voltage and current can be adjusted independently. The adjustable power supply widely used in industrial control and electronic products aging and testing. It is suitable for all kinds resistive load, capacitive load, and inductive load
Features
- Advance switching mode power supply technology and component, excellent design, small volume, light weight, high efficiency, which ensure the stability and reliability of long-term full-load operation.
- Max Output : 150/300V, 10/20/30 A, Max Power : 6000 W
- Constant voltage value and constant current value can be continuously adjustable within the range 0-100%.
- Digital display output voltage and output current
- Temperature control fan, Over-temperature automatic protection ; Output over-voltage
- Over-current and short-circuit protection ; start up delay soft starting can avoid the overshoot. voltage when start up.
- Simple operation, convenient use
- Store temperature (-40 ~ 70)°C, working temperature : (-20~50)°C
- Relative humidity : 90% (40 ±2°C), Atmospheric pressure (70-106) kPa
Application
It is widely used in field testing of electrical power equipments, system control, communication system, scientific research, and other equipments.

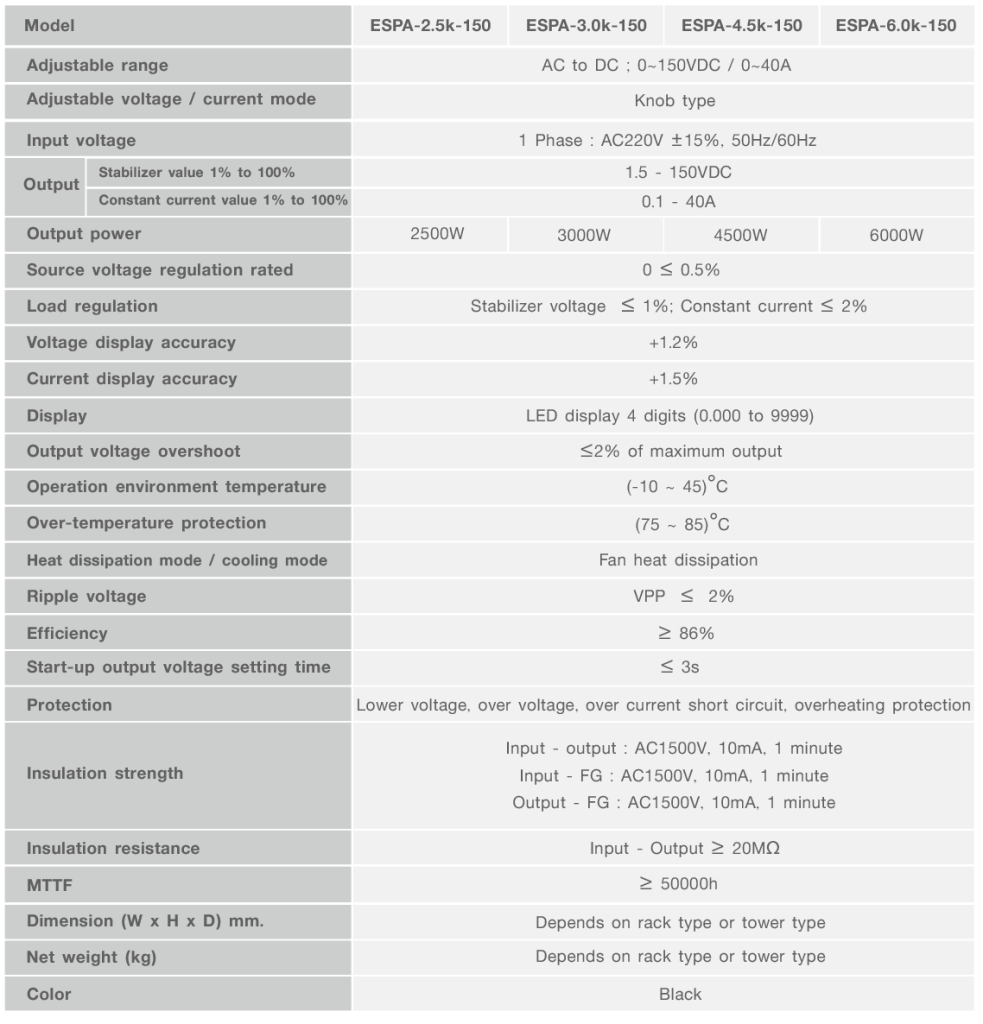

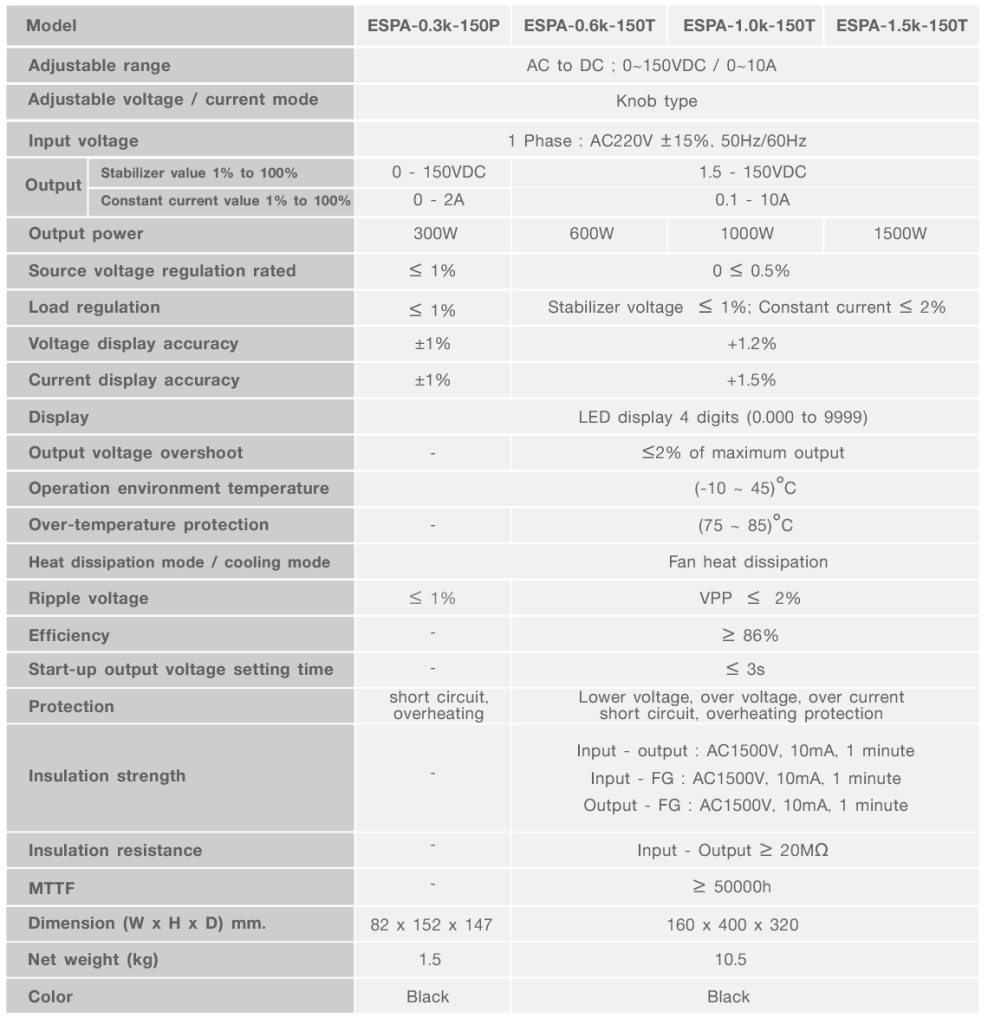

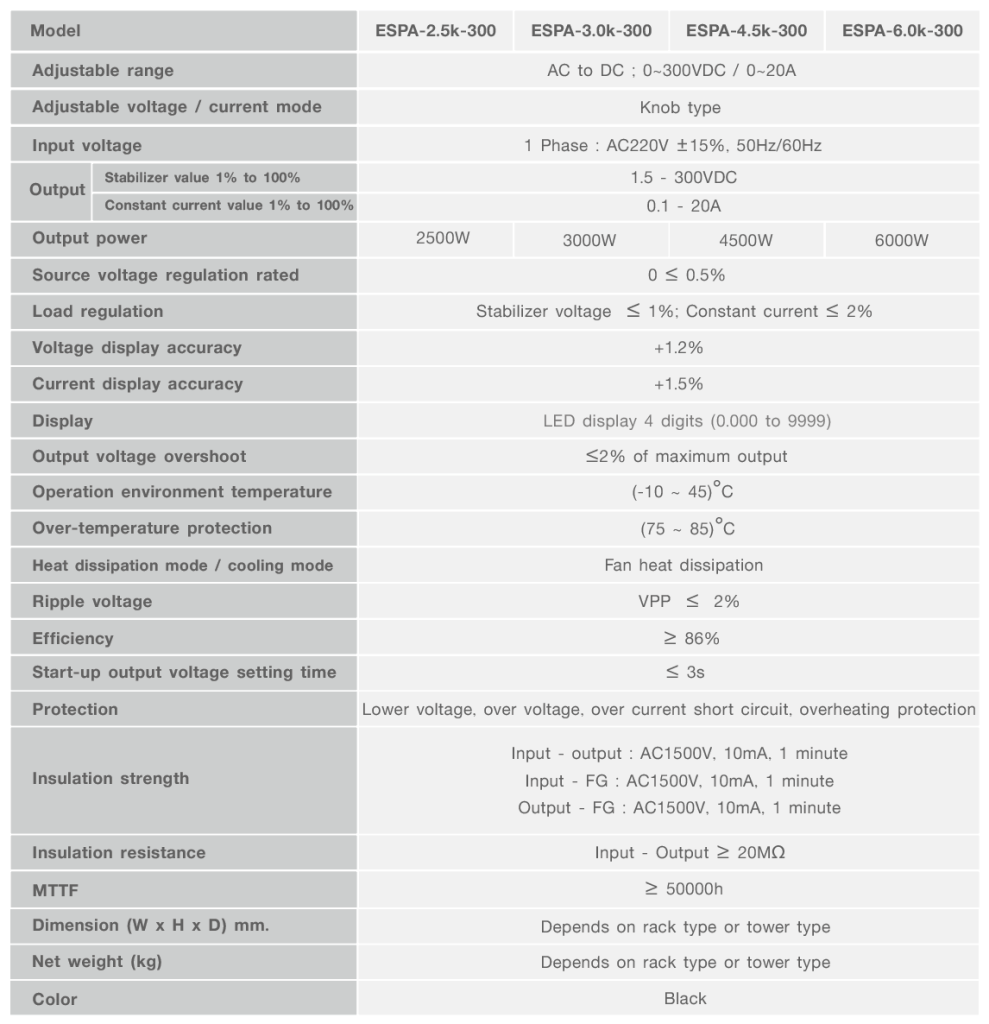

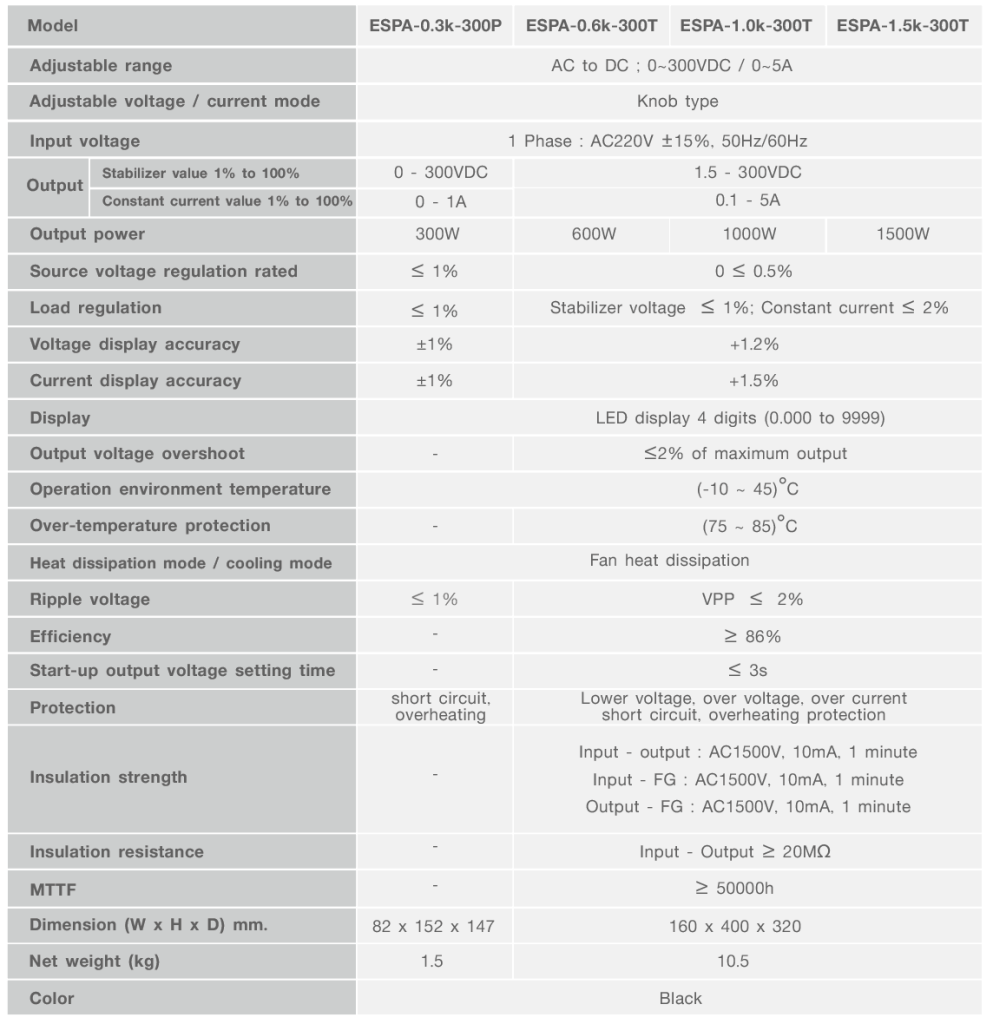

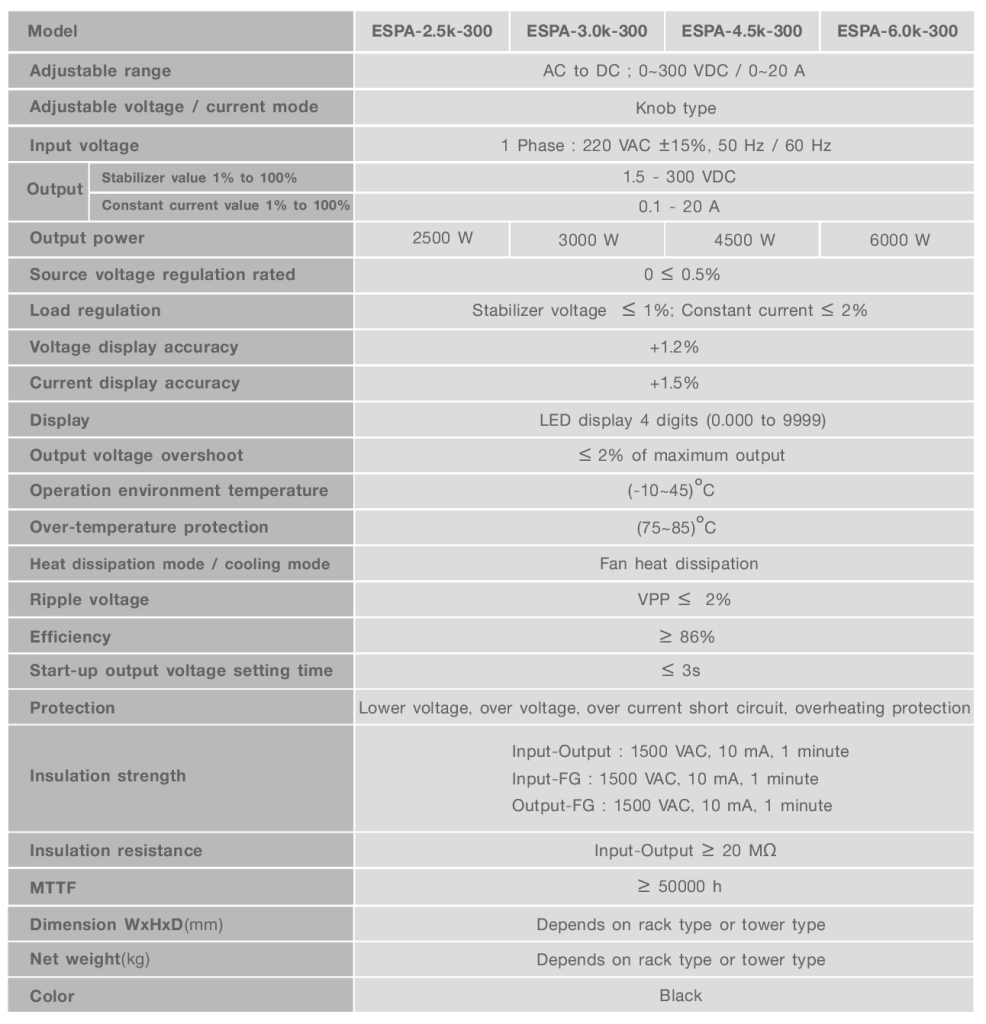

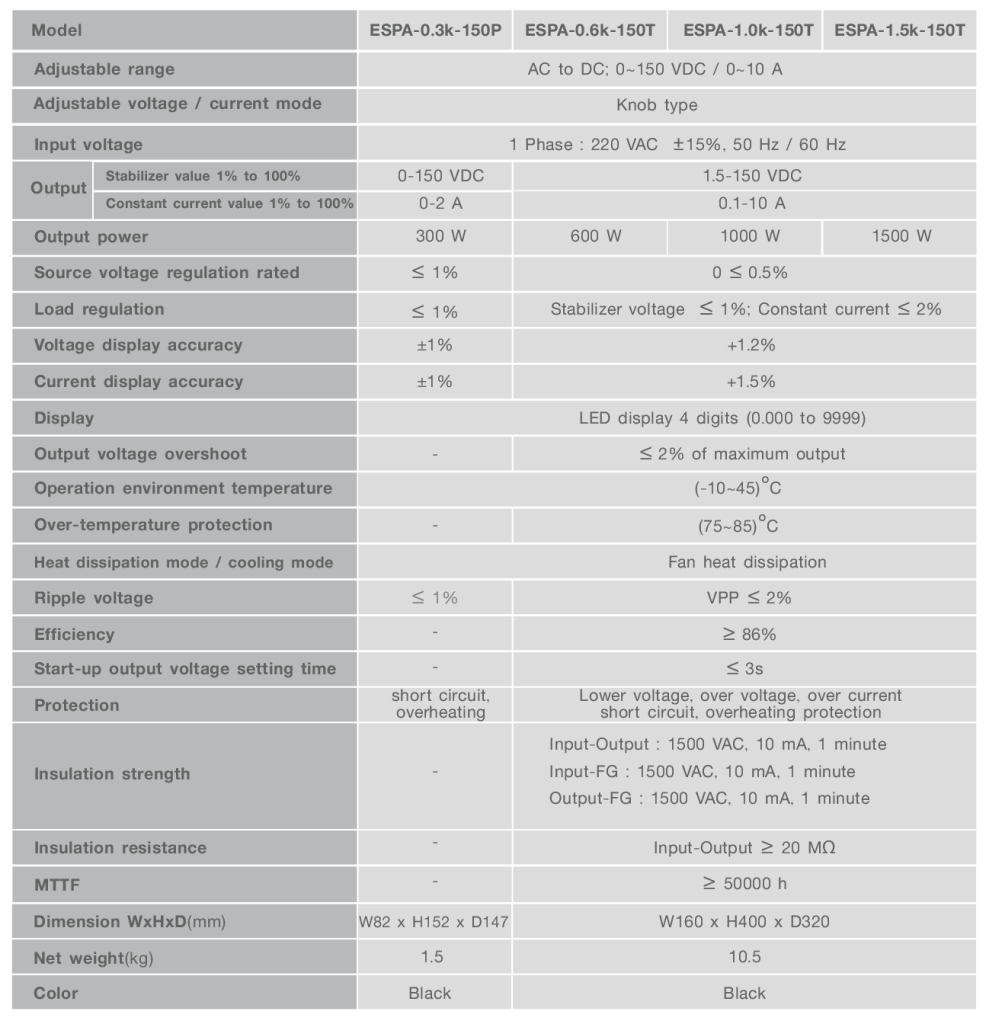

Specification

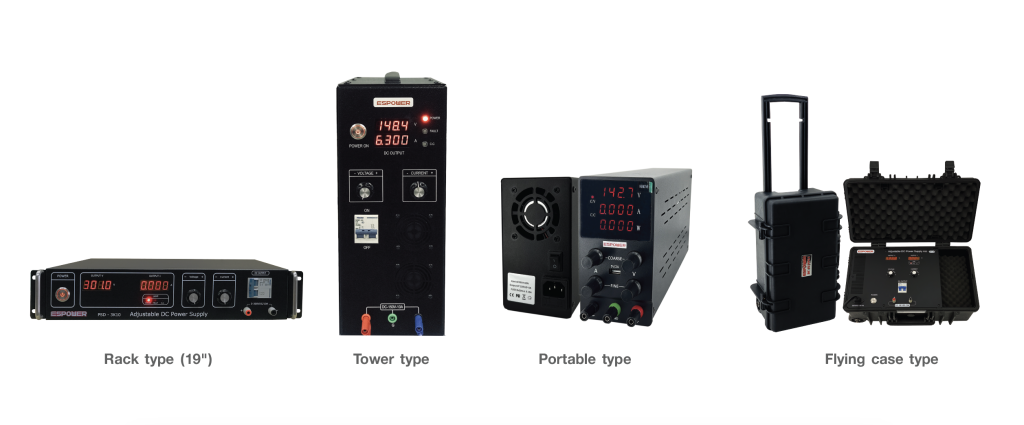

Dimension

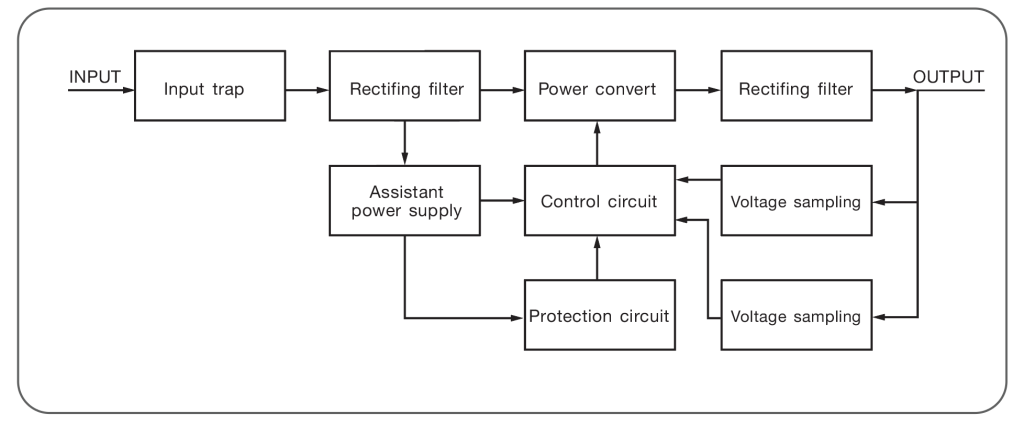

Block Diagram

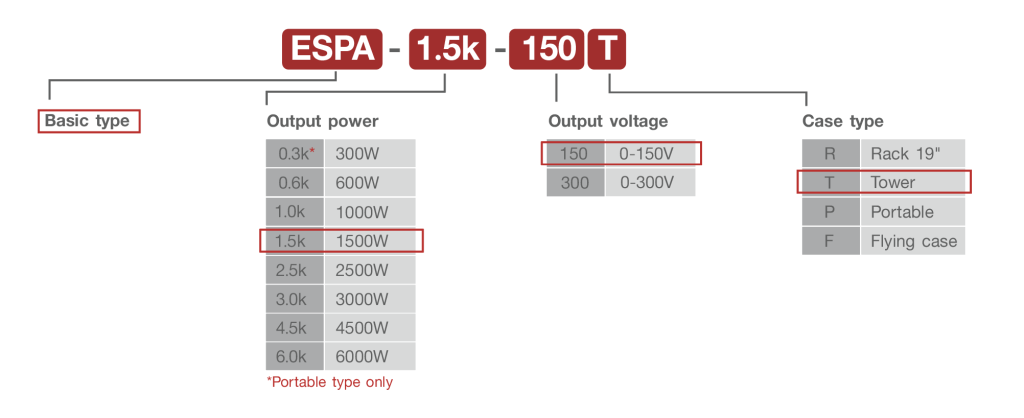

Product Coding
