AUTOMATIC VOLTAGE STABILIZER
AUTOMATIC VOLTAGE STABILIZER

DESCRIPTION

    The “ESPOWER” Automatic Voltage Stabilizer (AVS) is electronic controlled and operated by Precision Servo Motor to distribute high precision AC voltage output. The front panel is designed for simple operation combine with LED Digital Meter which display for voltage and current output. It has excellent features, such as small waveform distortion, high efficiency, high power factor, free from the effect of frequency variation. It can be widely used in most situations where the voltage stabilization is required

The AVS series has two regulator voltage output, 110VAC and 220VAC which suitable for;

♦      Resistive load such as Heater, Incandescent lamp, etc.
♦      Inductive load such as Electric Motor, Electric Drill, Air Conditioner, etc.

FEATURES

♦     Power factor: ≥ 0.8
♦     Frequency: 50/60 Hz
♦     Pure sine wave AC output
♦     Response time: Less than 1 second
♦     Operating temperature: −10°C to 40°C
♦     2 output voltage: 110VAC and 220VAC
♦     Wide range of AC input voltage: 150 – 250V
♦     High efficiency: > 96% (from half load to full load)
♦     LED front display output for voltage & current output

DESCRIPTION

♦     Sound system                                        ♦     CNC machine

♦     Security system                                     ♦     Medical equipment

♦     Computer system                                  ♦     Laboratory test equipment

♦     Communication system                       ♦     Industrial process control system

BLOCK DIAGRAM

CONNECTING DIAGRAM

PRODUCT CODING

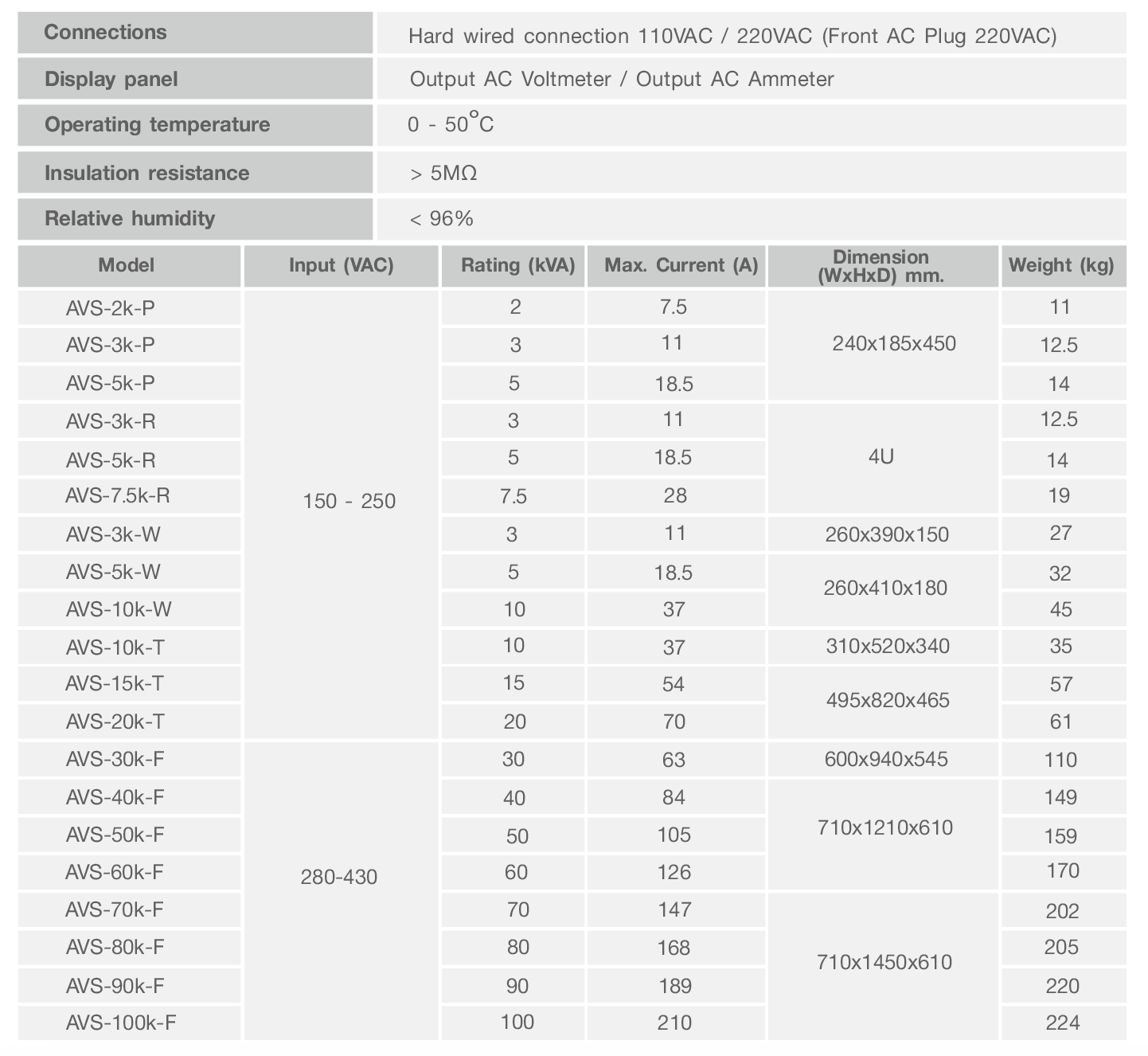

SPECIFICATION

♦      Connections

♦      Display Panel

♦      Operating temperature

♦      Insulation resistance

♦      Relative humidity

:  Hard wired Connection 110VAC / 220VAC (Front AC Plug 220VAC)

: Output AC Voltmeter / Output AC Amp. Meter

: 0 – 50°C

: > 5MΩ

: < 96%

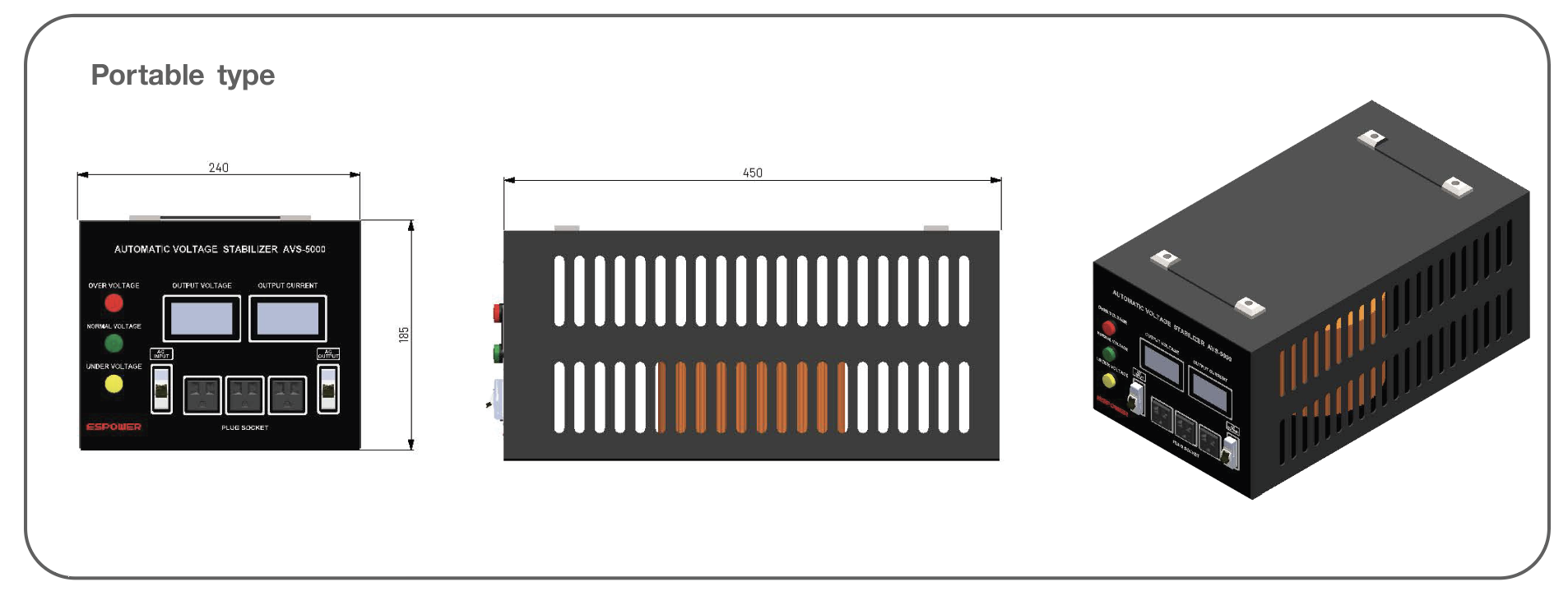

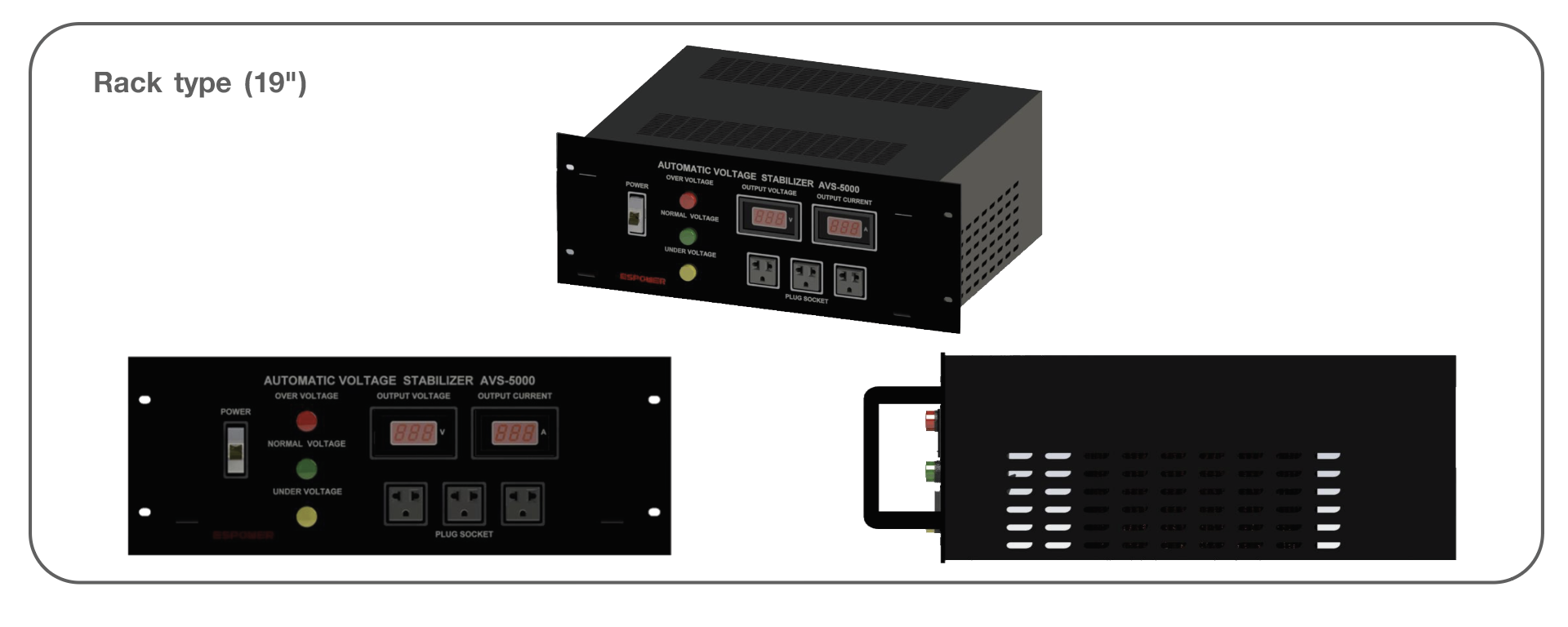

DIMENSION
