SD-BD-04-02/Rev.10/09-01-69

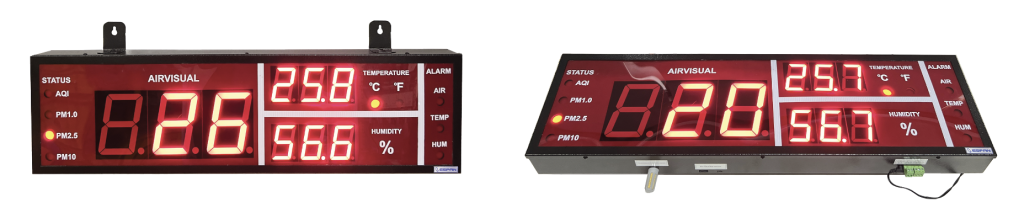

DIGITAL AIRVISUAL (DAV)
Description
The Digital AirVisual PM1.0, PM2.5 and PM10 is a device used for measuring indoor air quality, including particulate matter, temperature, and humidity. It is specifically designed to measure fine airborne particles ranging from 1.0 micron up to 10 microns in size. These airborne particles are extremely small and invisible to the naked eye.
The device can measure PM levels in real time and display the results as an Air Quality Index (AQI), making it easy to understand whether the air quality is good, moderate, unhealthy, or hazardous.
In addition, it features an alert system that notifies users when the air quality drops below the standard threshold through both an audible alarm (buzzer) and a visual LED display that shows the AQI status.
Features
- Used to monitor indoor air quality in Buildings, Site Offices, Schools, Hospital and Factories.
- Applicable for environmental or health research to collect air quality data.
- Detects and reports PM1.0, PM2.5 and PM10 levels in real time with continuous monitoring.
- Measures additional parameters such as temperature and humidity.
- Displays readings as Air Quality Index (AQI) values, making it easy to understand whether the air quality is good, moderate, unhealthy, or hazardous.
- Allows users to set audible alerts (buzzer) when air quality drops below or rises above the specified threshold.

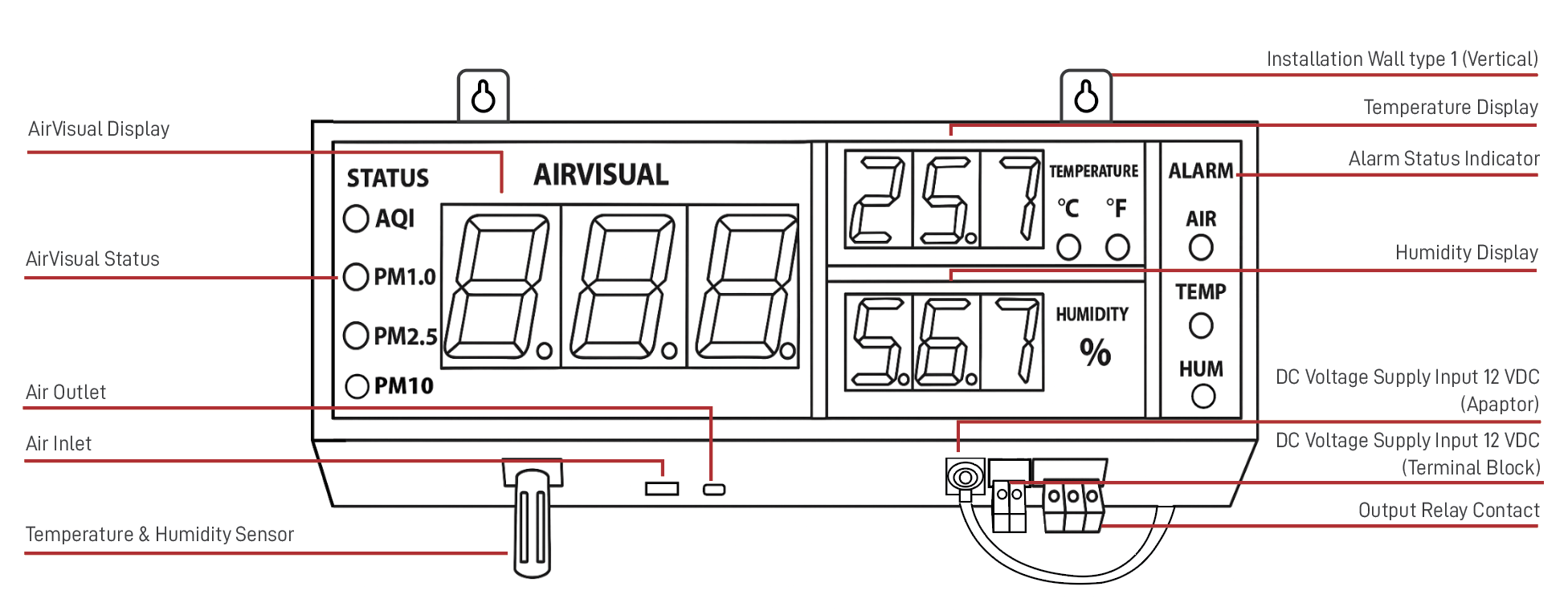

Display panel

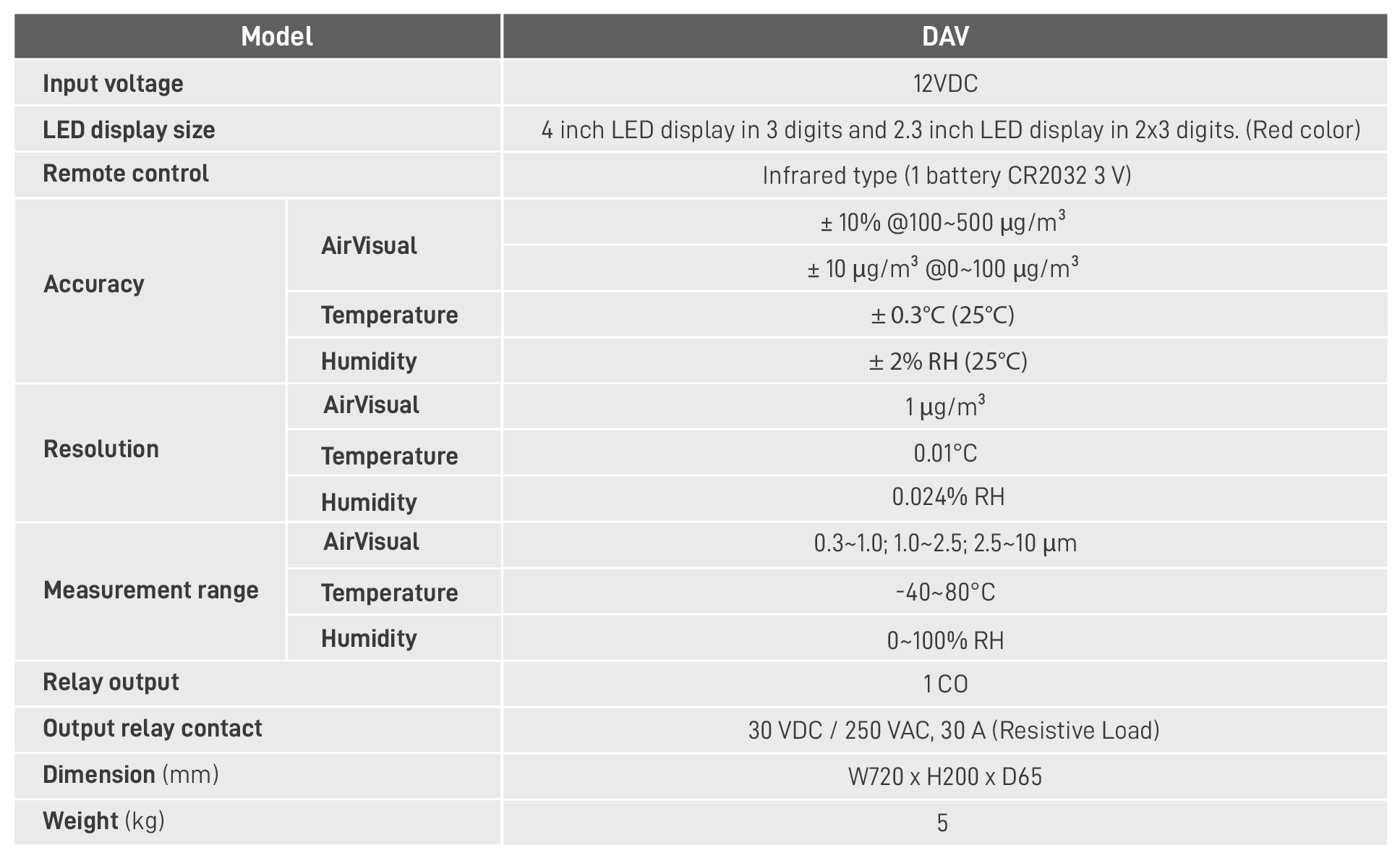

Technical Data

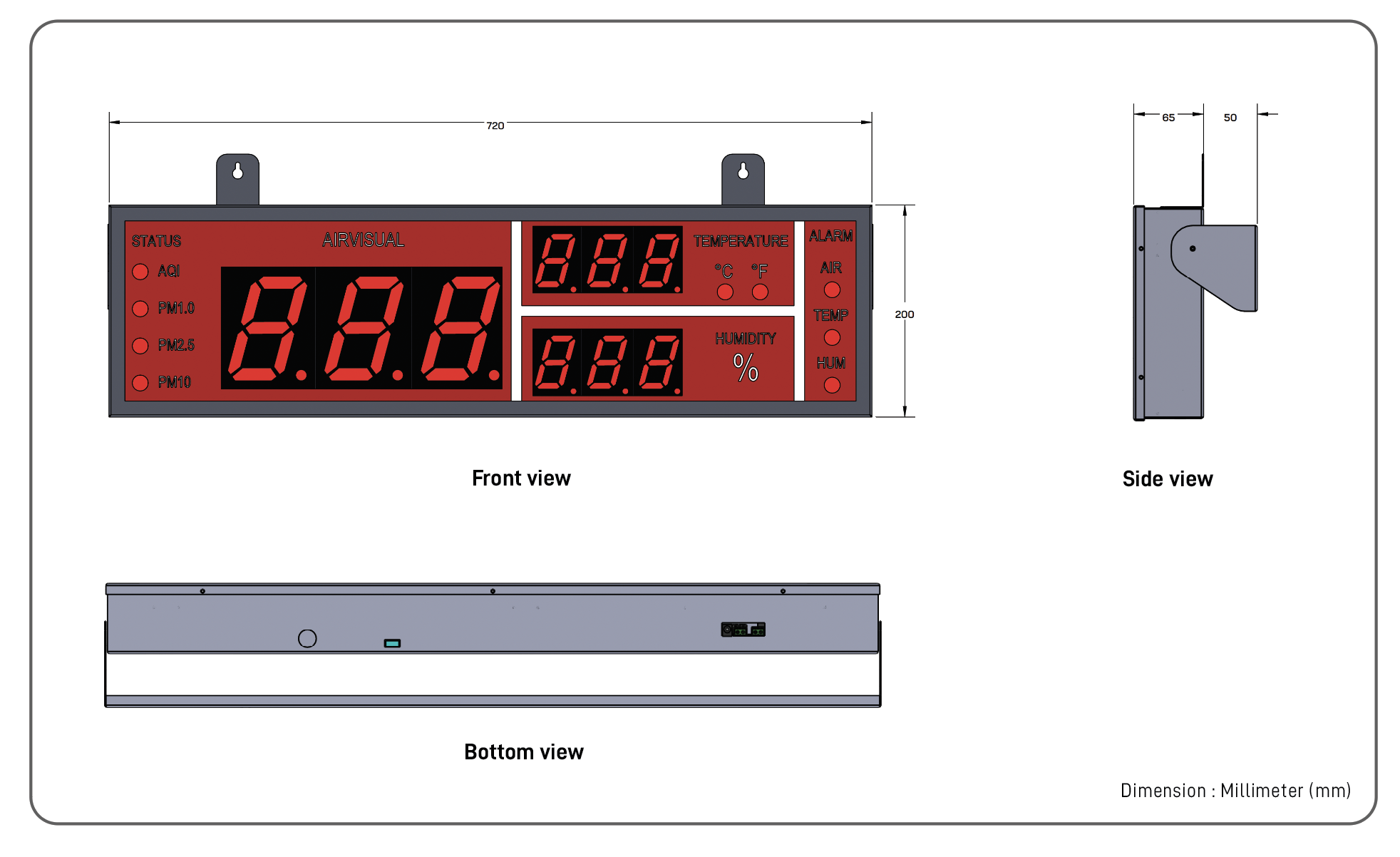

Dimension

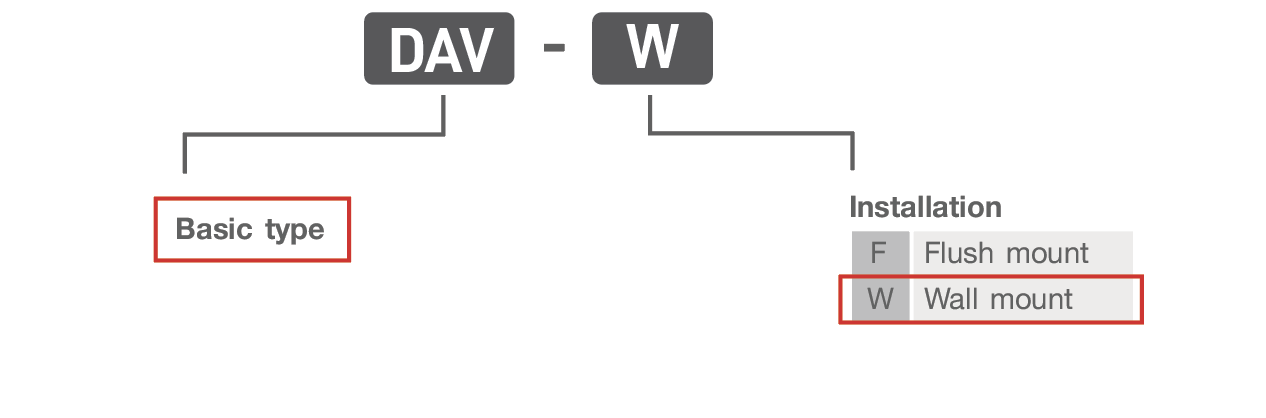

Product coding
