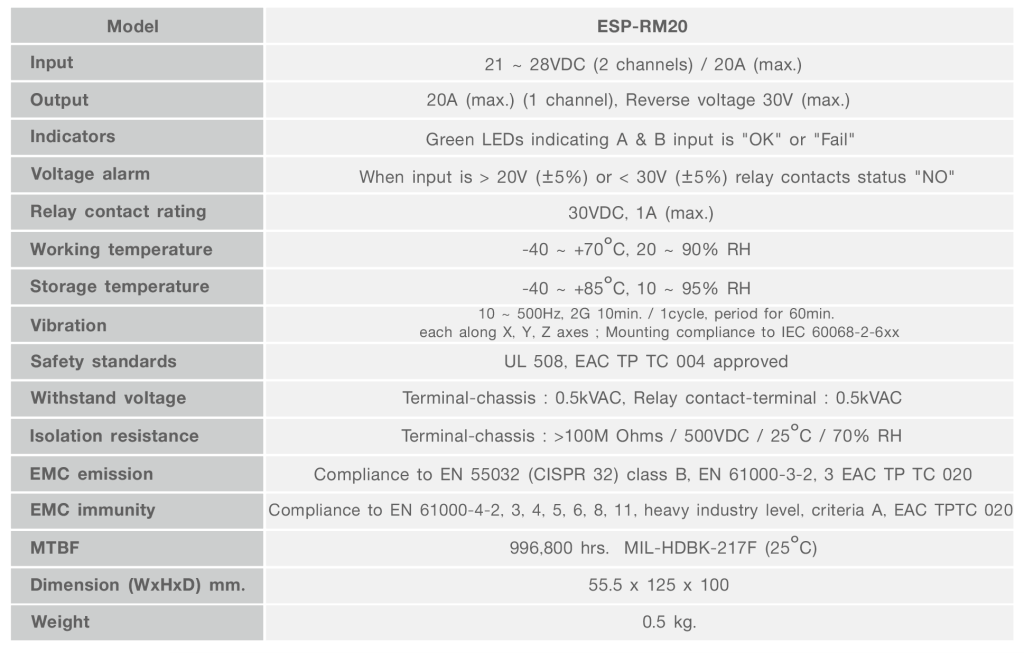

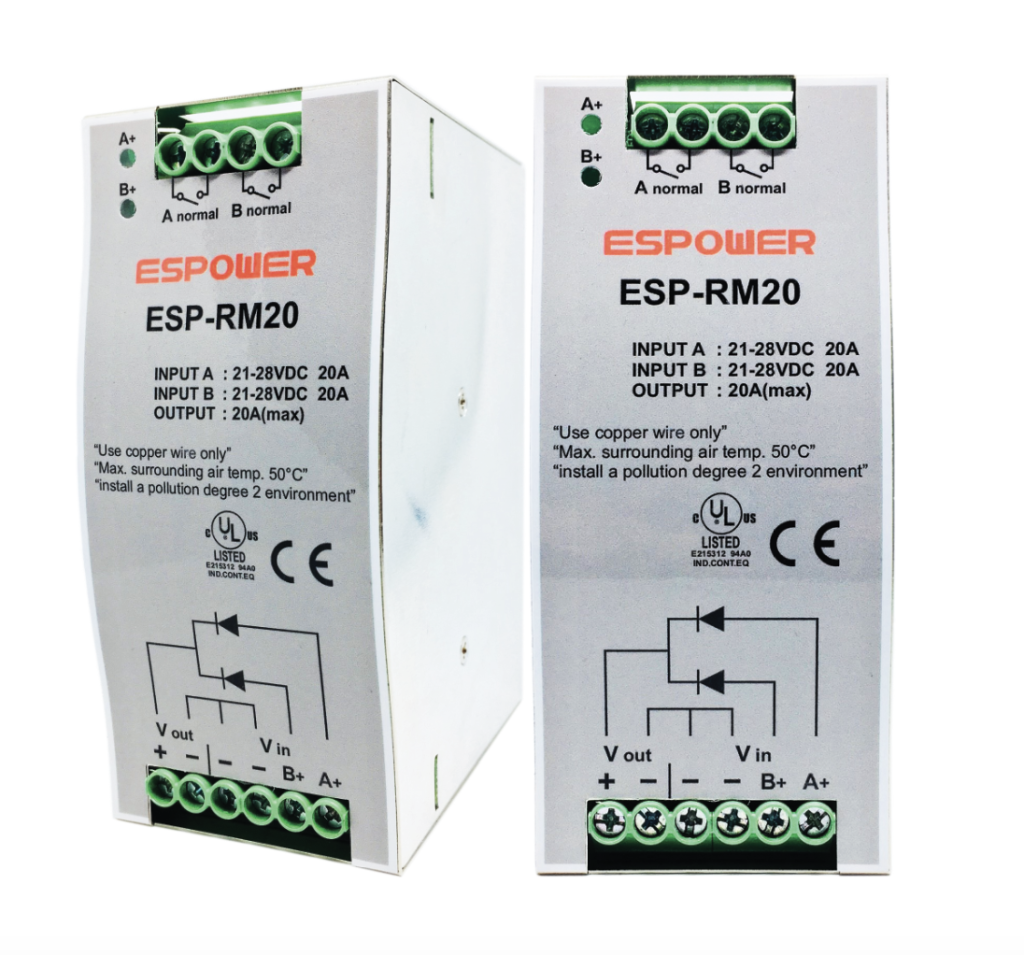

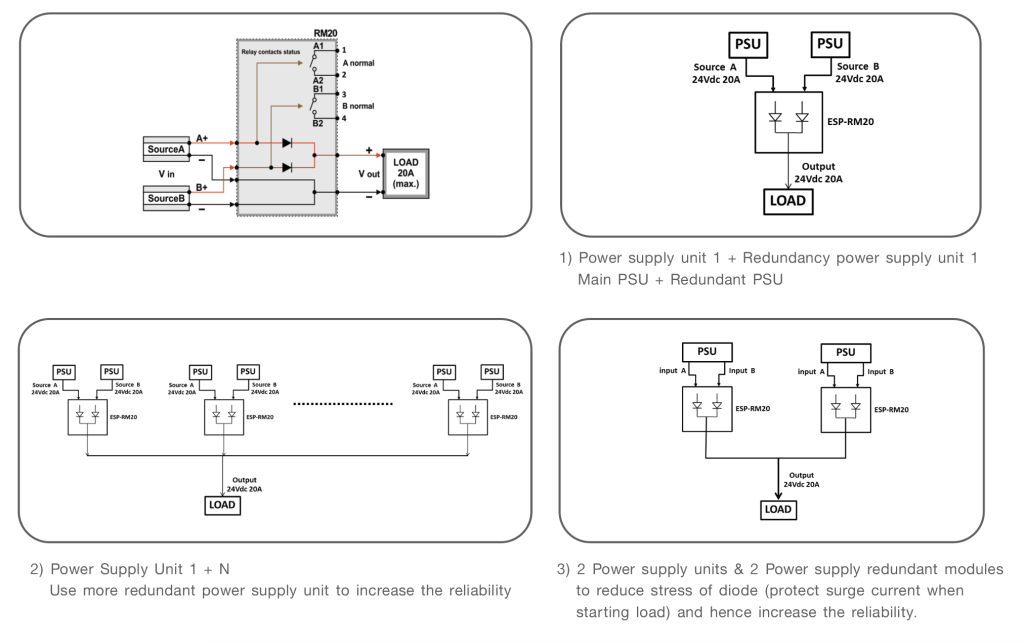

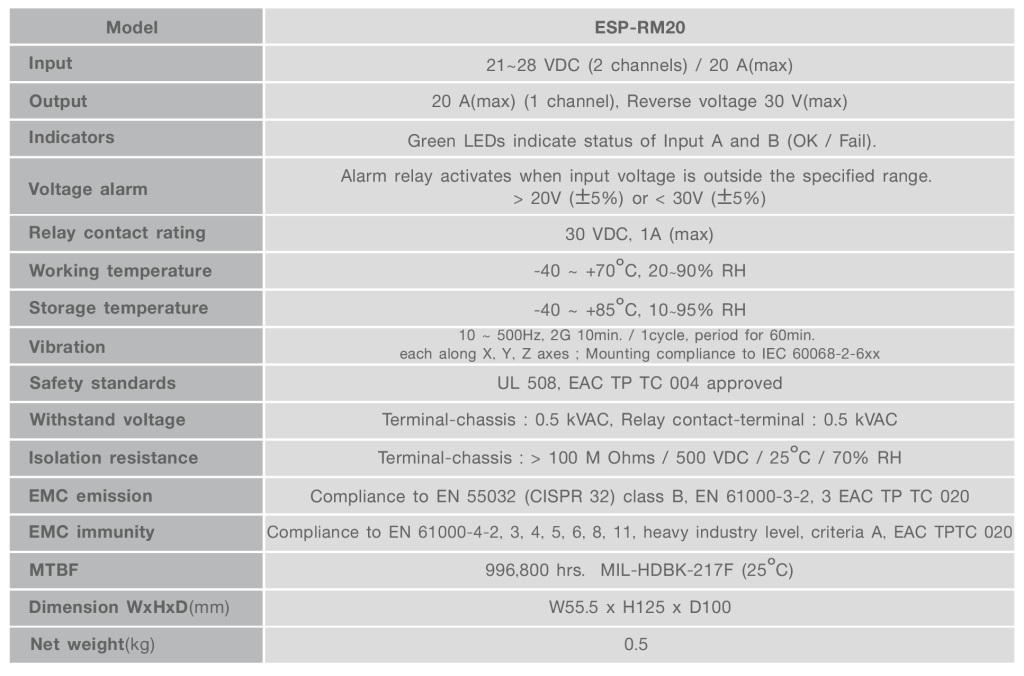

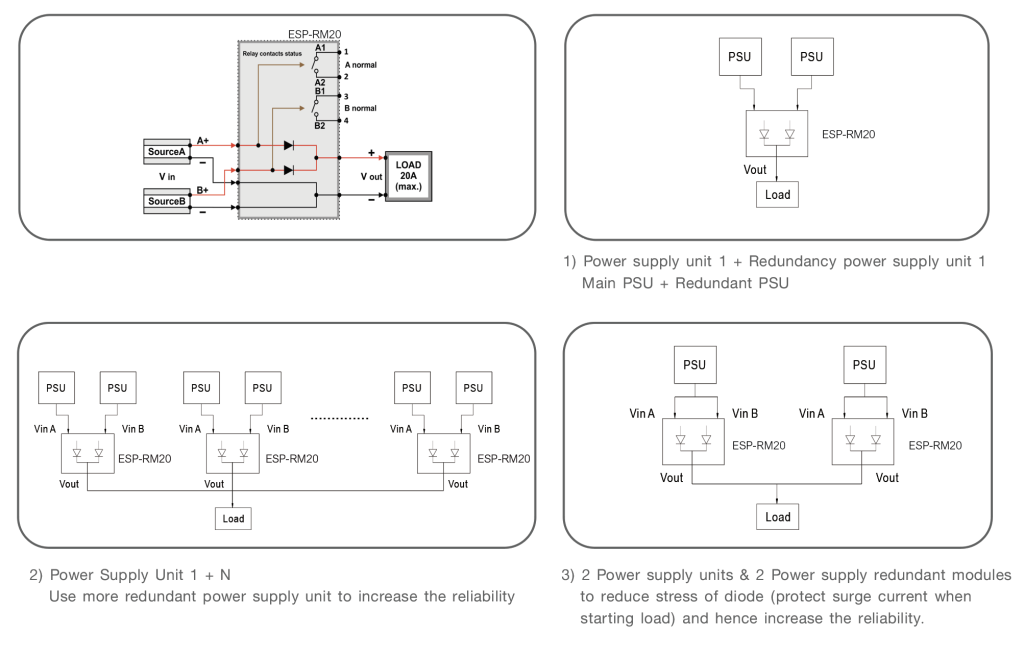

Redundant power supply use for DC Power reserved of 24VDC, 20A. Input by 2 sources of 24VDC (one input is working as standby source) and output is 24VDC/20A as input source (max. 580W)

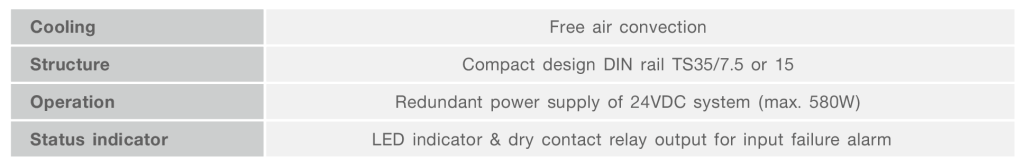

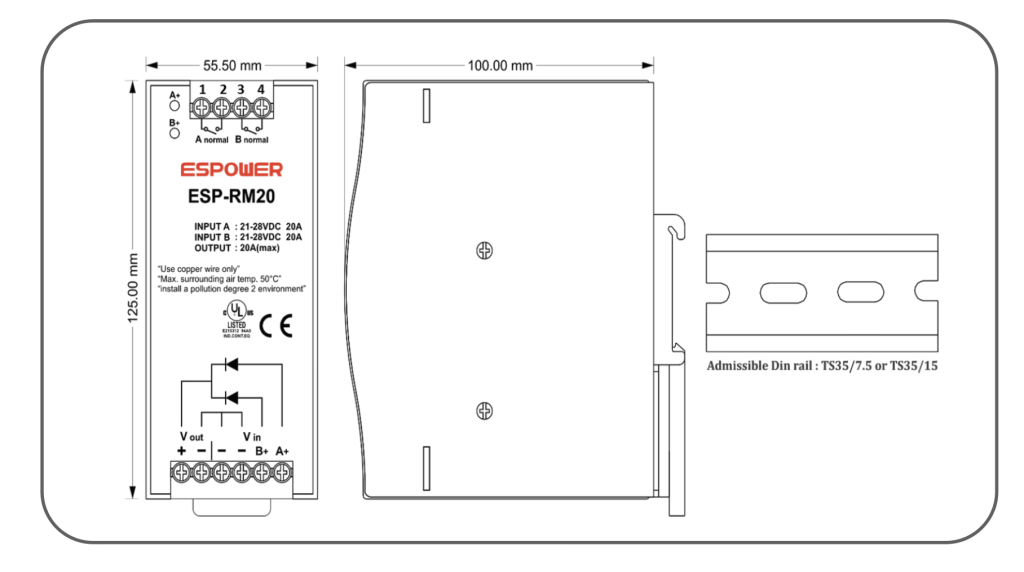

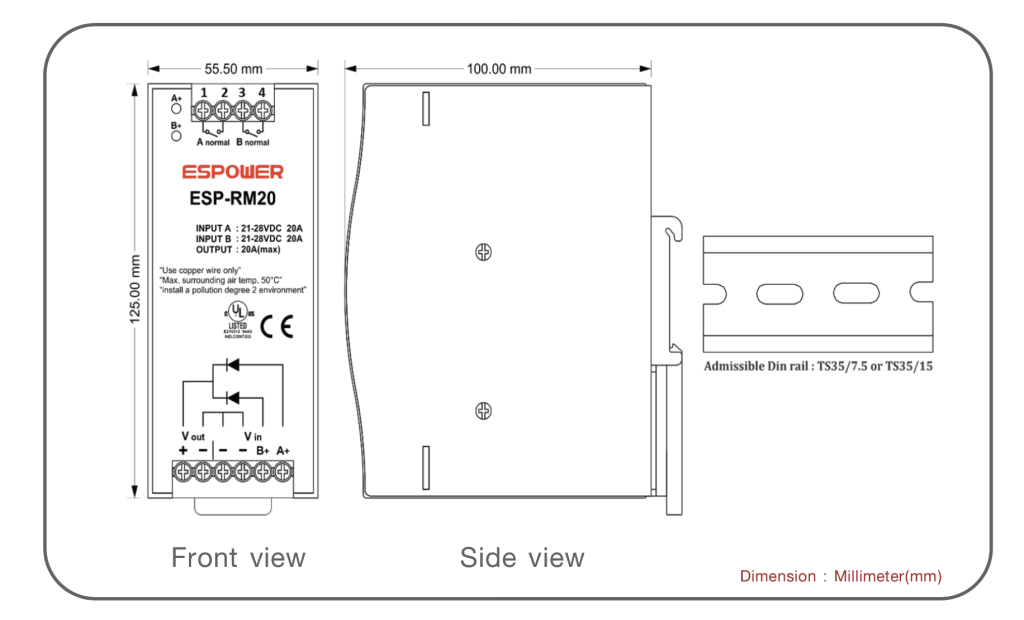

             The compact design is suitable for DIN rail TS35/7.5 or TS35/15 and includes an LED indicator and a dry contact output for input-failure alarm.
