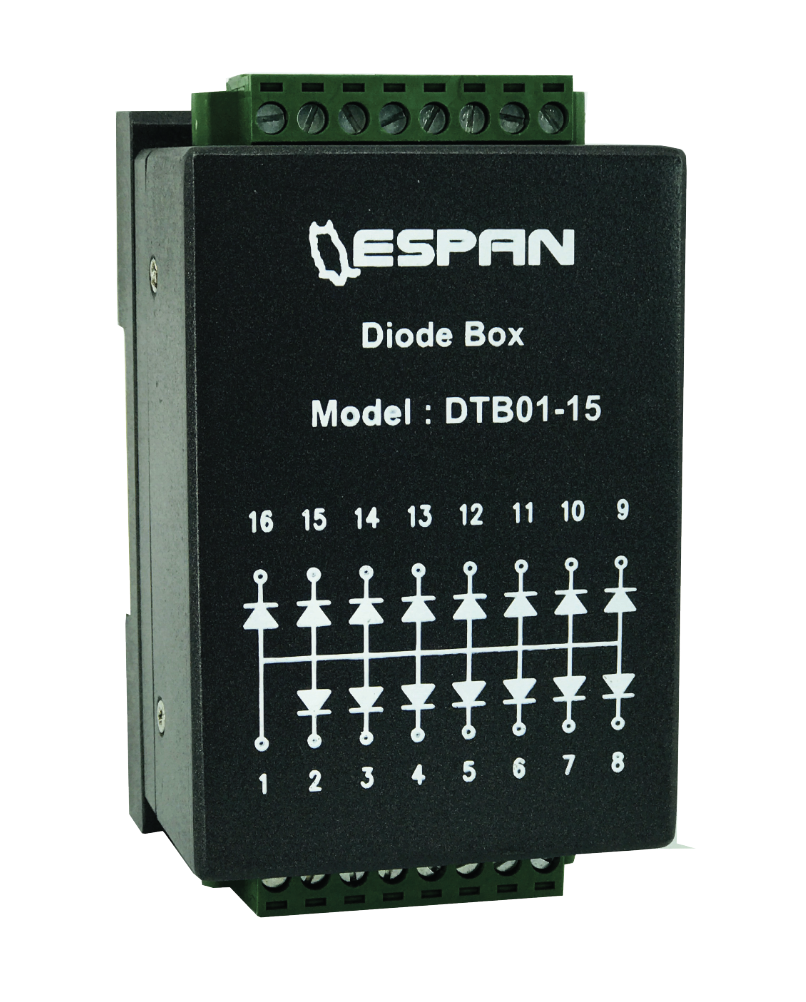

DIODE BOX (DTB01)
DIODE BOX (DTB01)

Description

        Diode box is use for rectifier, polarity reverse protect, suppressor spike voltage from DC relay coil (Back EMF), blocking DC volt, bypass DC volt etc. Safety from electric shock and easy to install with din rail mount or surface mount. High current circuit, 1A or 3A (specify when order).

Features

♦      10 or 15 Chanel of Diode

♦      High current circuit ( 1A or 3A) )

♦      Low forward voltage drop

♦      High surge current duration

♦      High reliability and stability

♦      Alarm type (Bell/Buzzer) of each input can be selected by software.

♦      Easy install with din rail mount & surface mount.

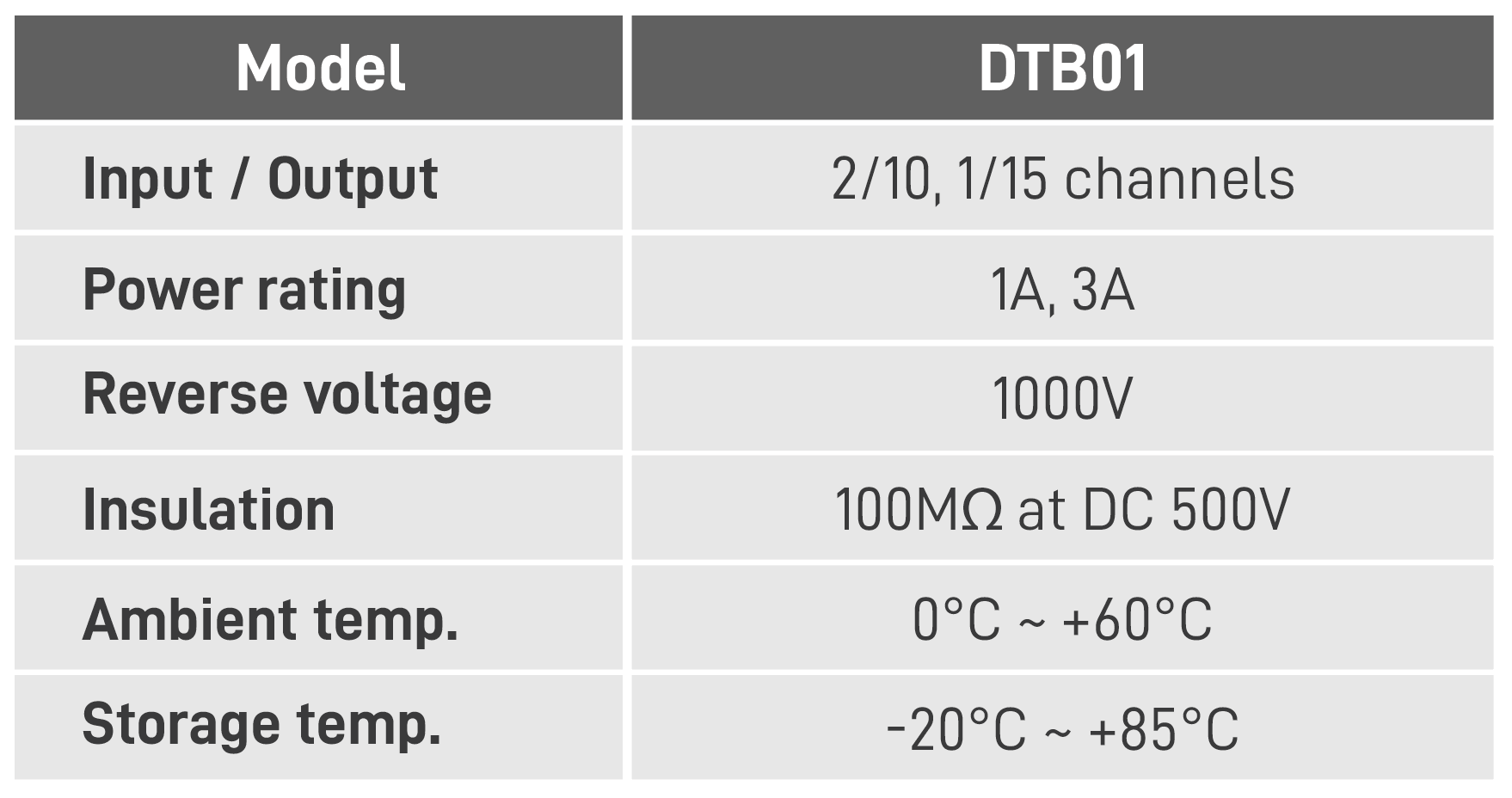

Specification

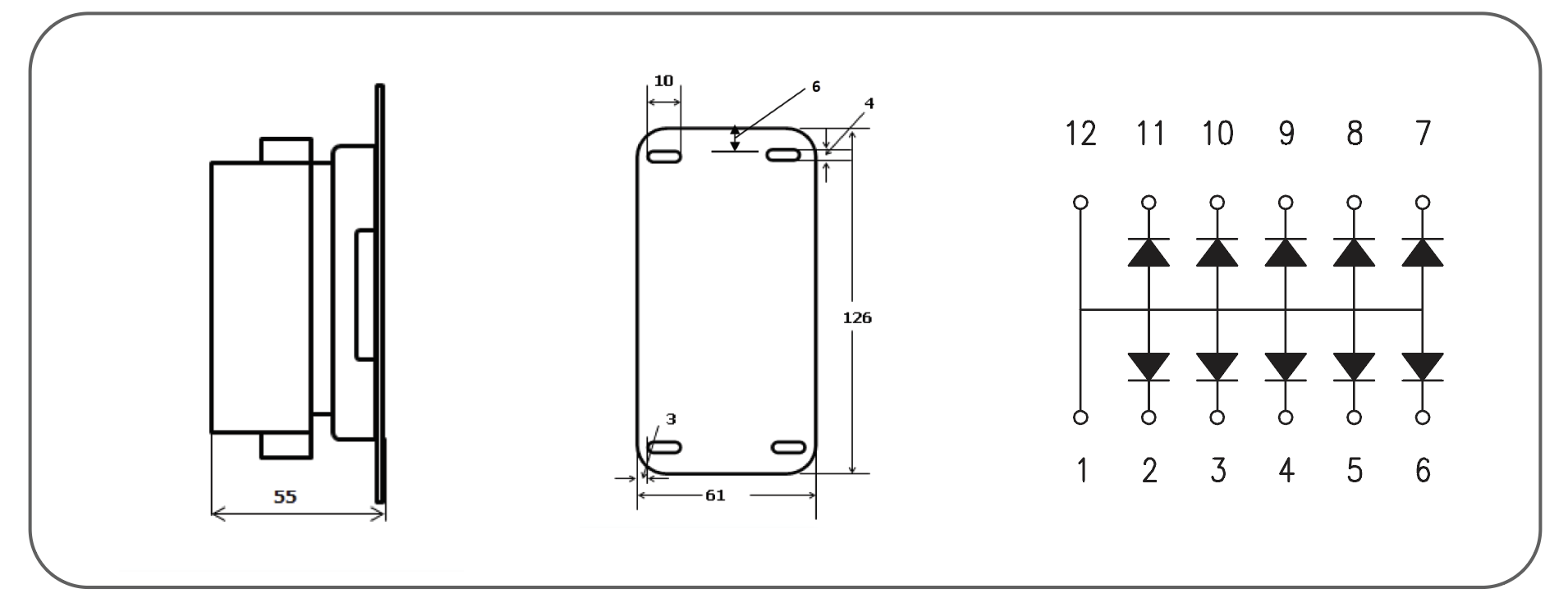

Dimension

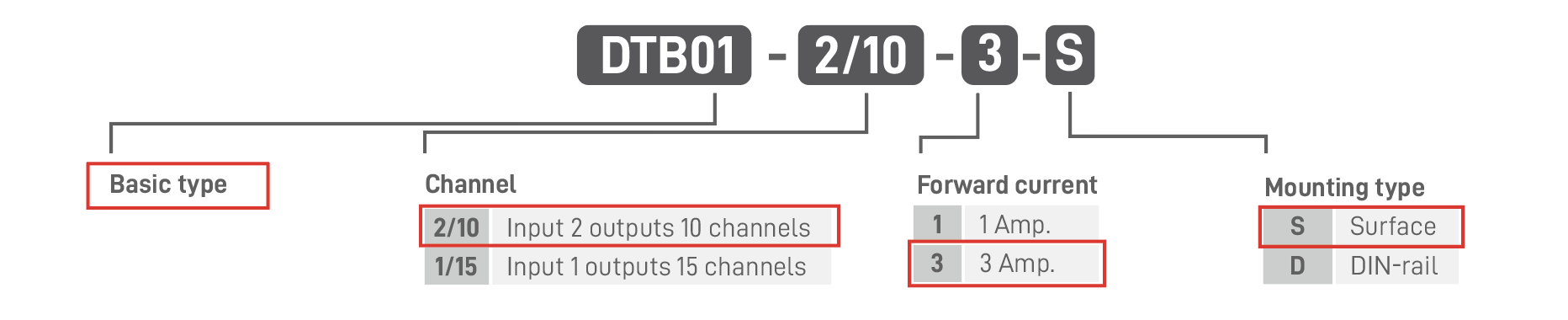

Product Coding
