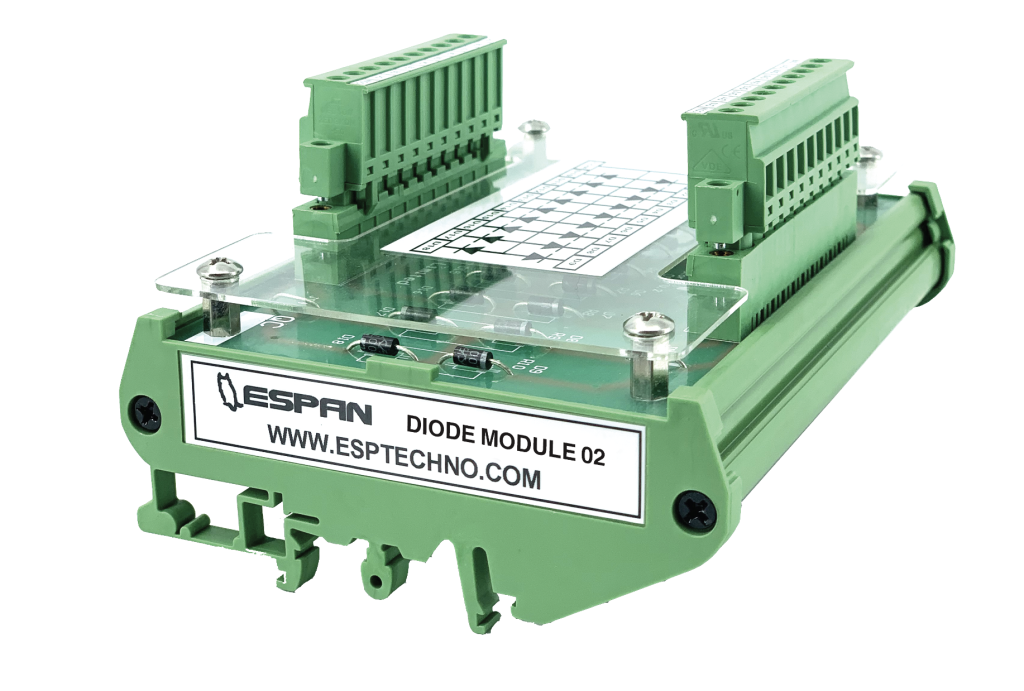

DIODE BOX (DTB02)
DIODE BOX (DTB02)

Description

        Diode box is use for rectifier, polarity reverse protect, suppressor spike voltage from DC relay coil (Back EMF), blocking DC Polarity, bypass DC volt, etc. Easy to install with din rail mount. High current circuit 1A or 3A (specify when order).

Features

♦      18 Chanel Diode

♦      High current ( 1A, 3A )

♦      High reliability

♦      Low forward voltage drop

♦      High surge current duration

♦      Easy install with din rail mount.

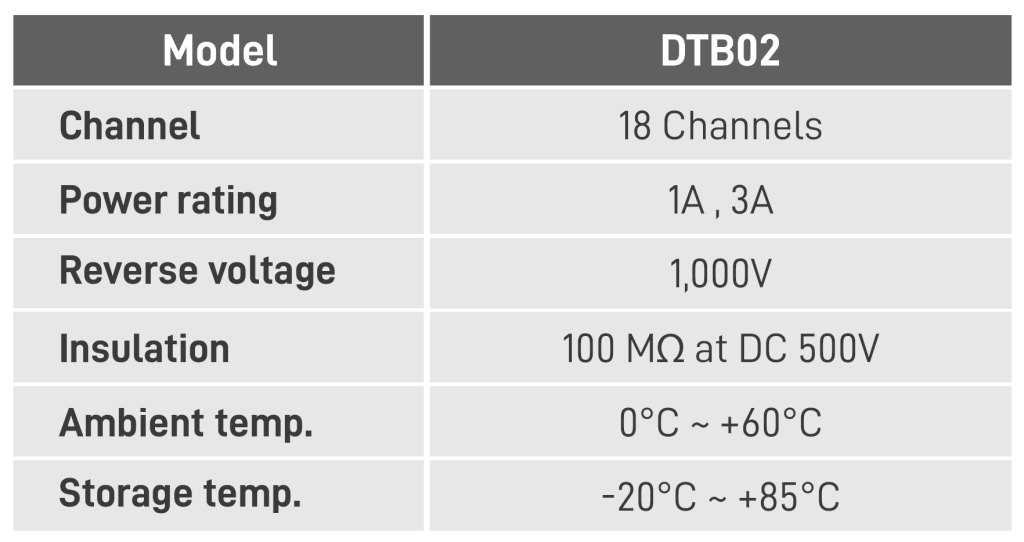

Specification

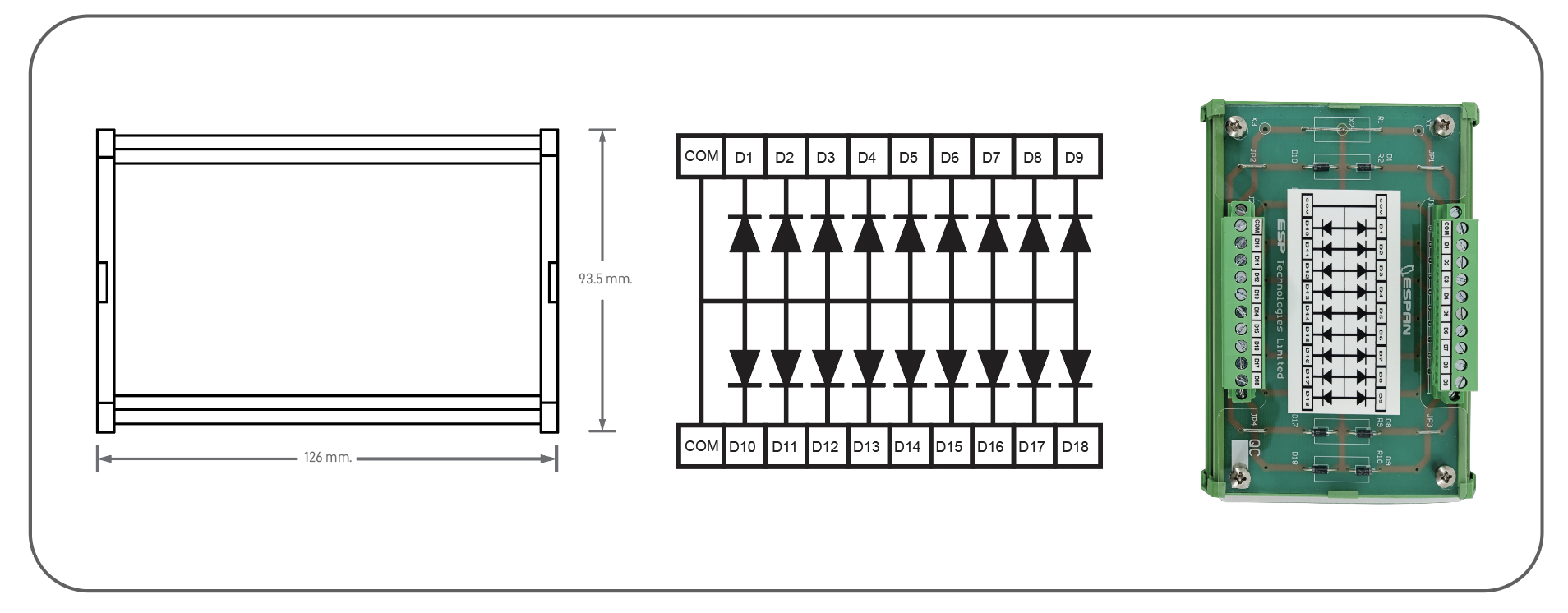

Dimension

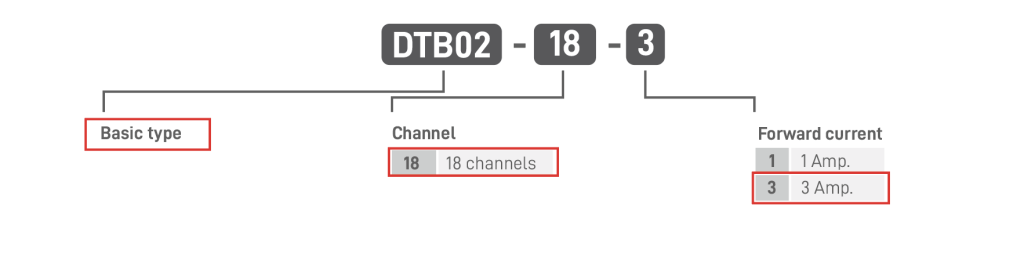

Product Coding
