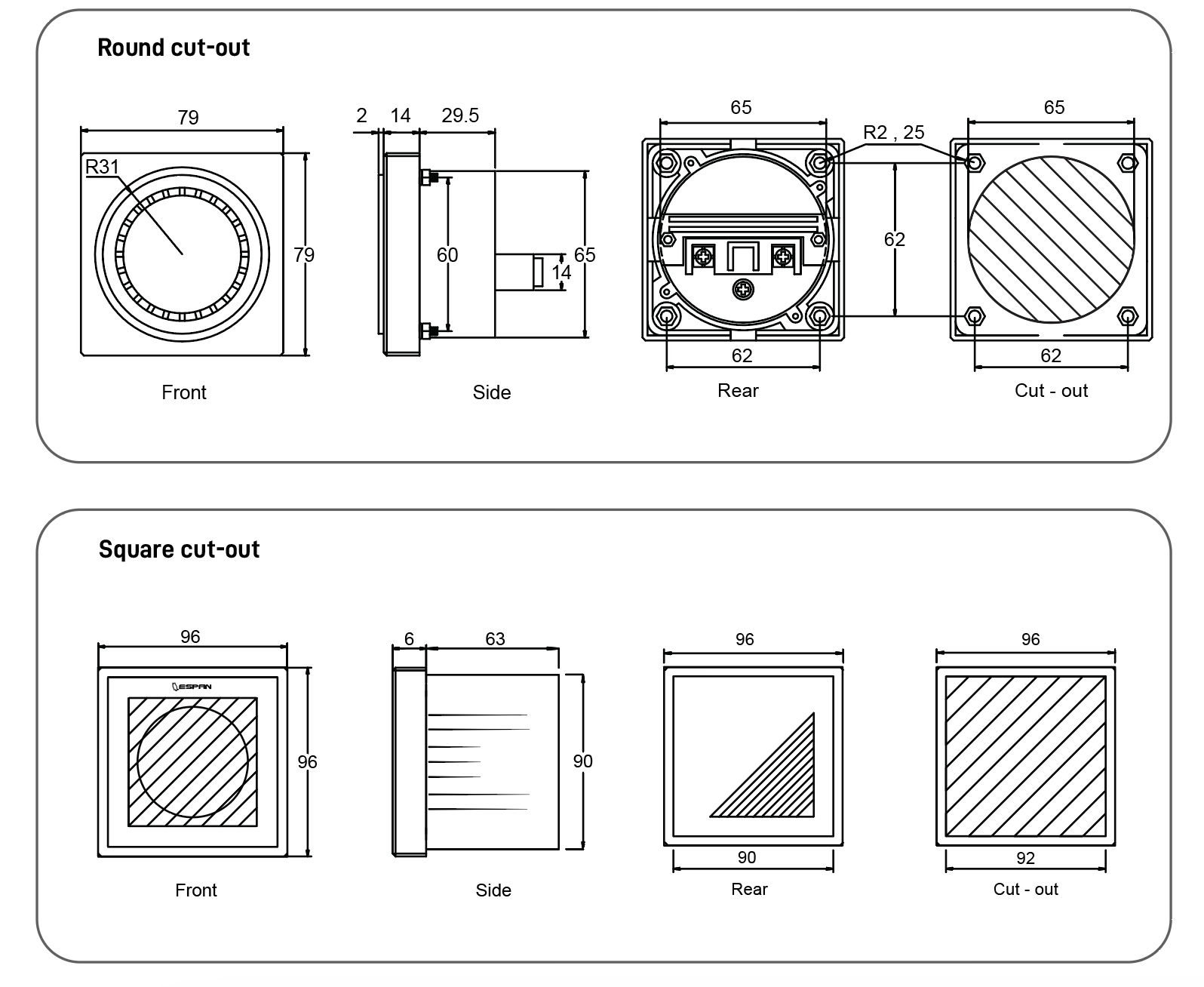

The ESPAN power buzzer type PBZ is manufactured for general purpose alarm and warning applications. Installing is quick and simply by tightening the four screws mount holes onto panel boards (62×62 mm.) for Round cutout type and cutout hole (92×92 mm.) for Square cutout type. Applications include : panel boards, switchboards, ceilings and walls for building hallways, corridors and manufacturing sites.


•      Electronic type, low power consumption

•      Power supply DC type or AC type

•      Wide operating range: -10% to +10% of nominal voltage

•      Protection class: IP40

•     Operating termperature : -25°C to +50°C

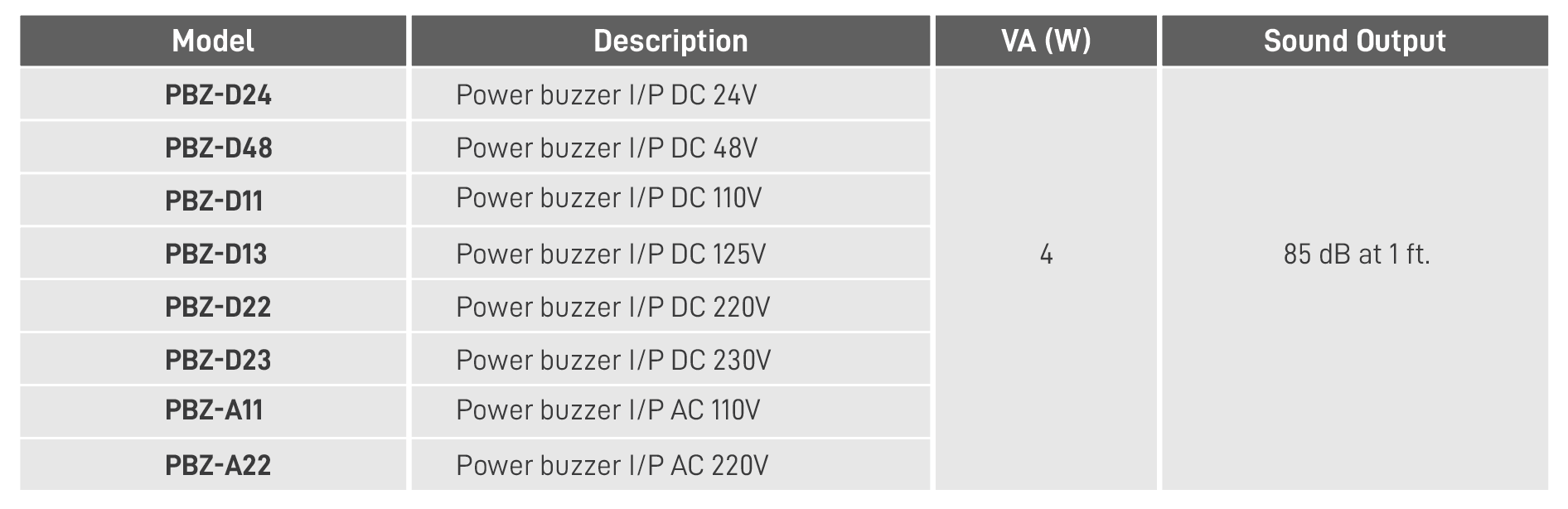

Technical Data

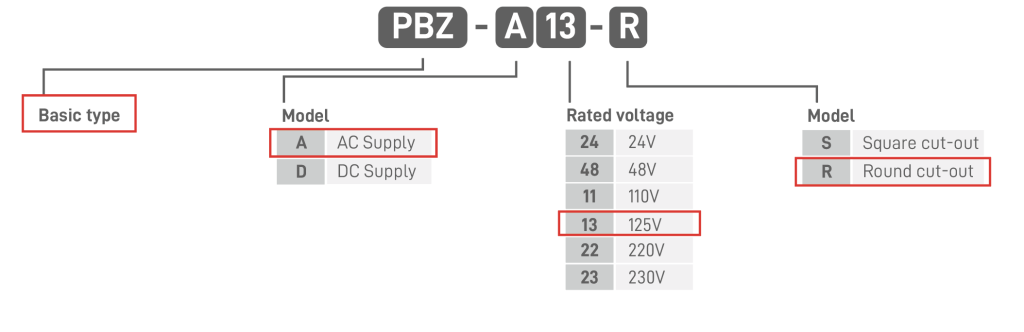

Product Coding
