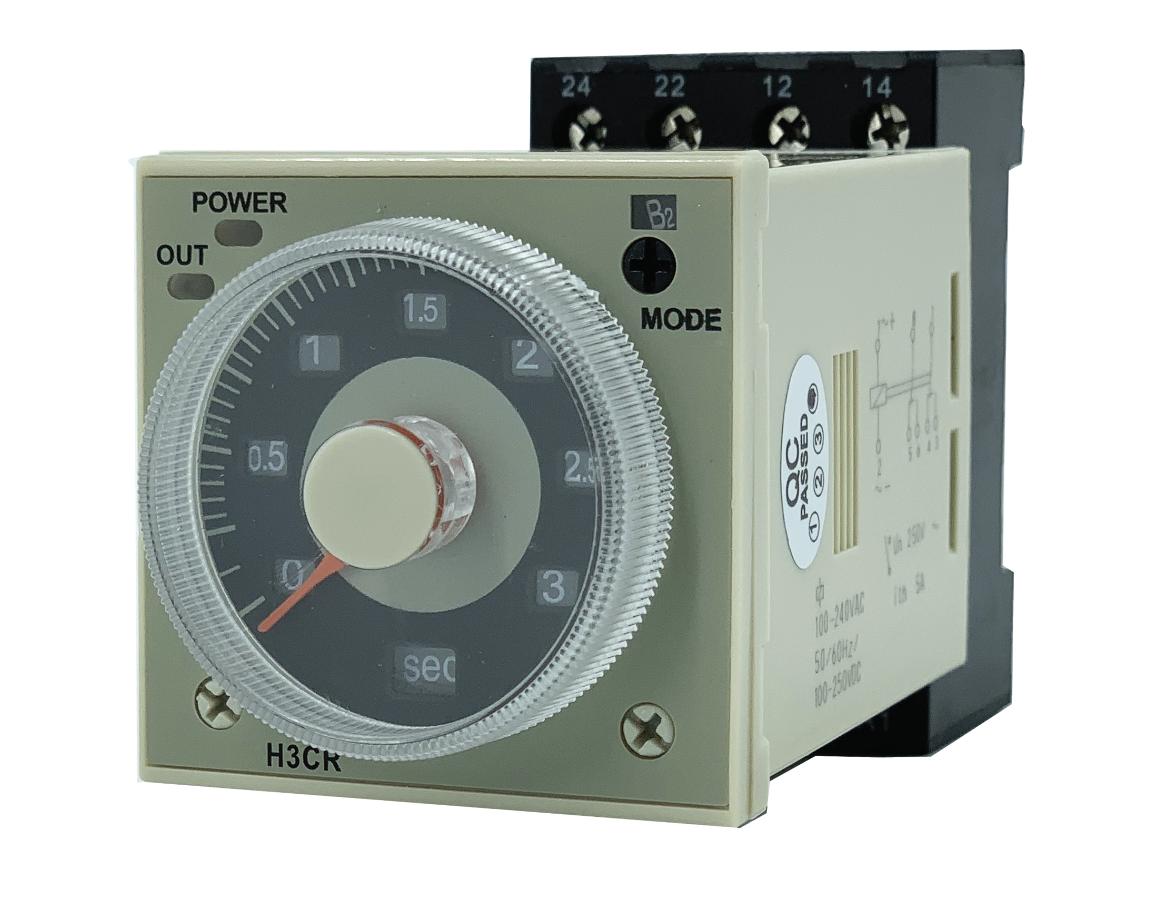

TIMER RELAY (H3CR)
TIMER RELAY (H3CR)

Features

♦     Field–selectable time selectable time ranges from 0.05 second to 300 hours
♦     Use for delay timing, ON-delay and OFF-delay.
♦     Wide input voltage ranges model from 24 to 240Vac/dc, fit most applications and reduce spare part inventories.
♦     Timing functions : signal ON-delay (A), ON-OFF interval (B2), OFF-delay (E), Pulse Trigger (J)
♦     Timer LED indicators : POWER ON (green) flickers during operation, OUT (red) on when normally open contact is closed.
♦     Short (80mm.) panel mounting depth with socket allows for more space-efficient control panel design

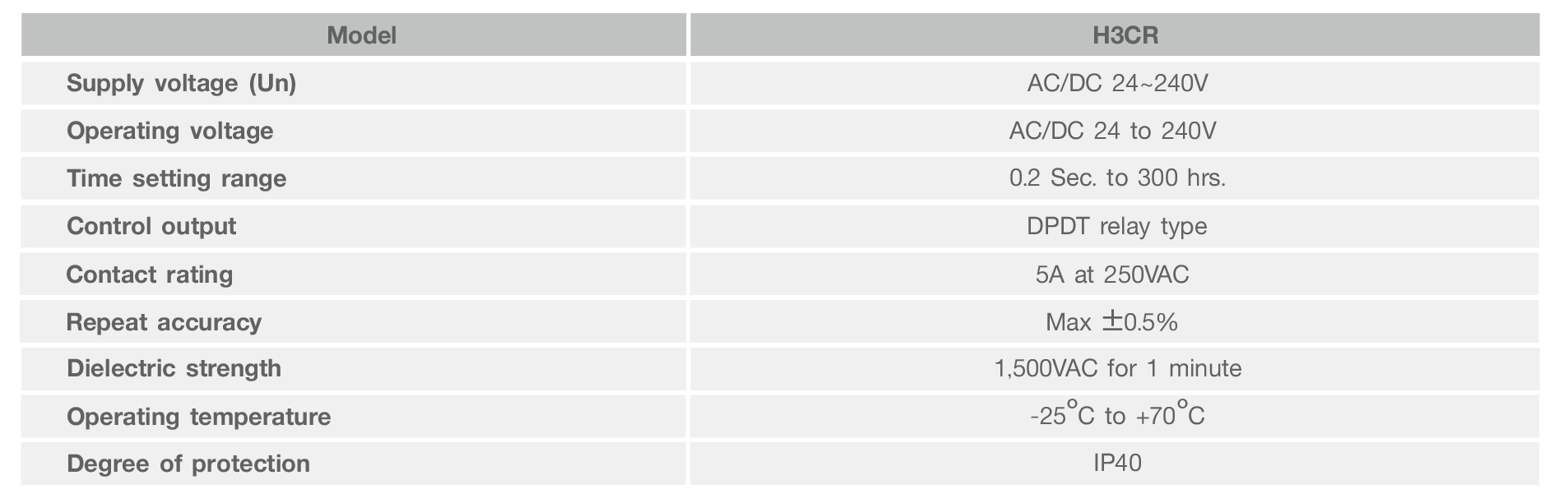

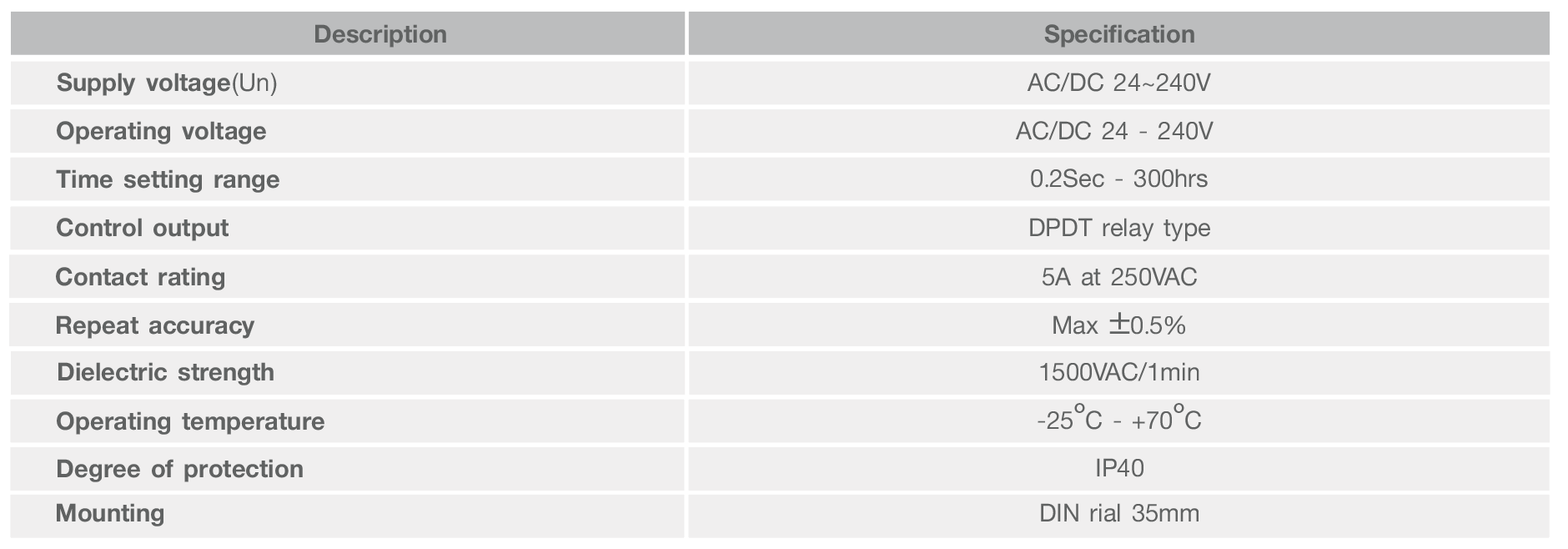

Specification

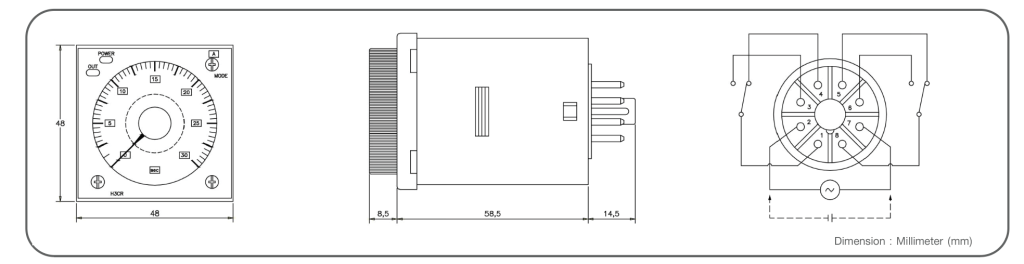

Dimension

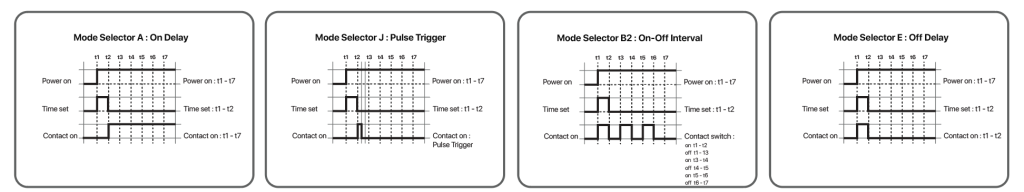

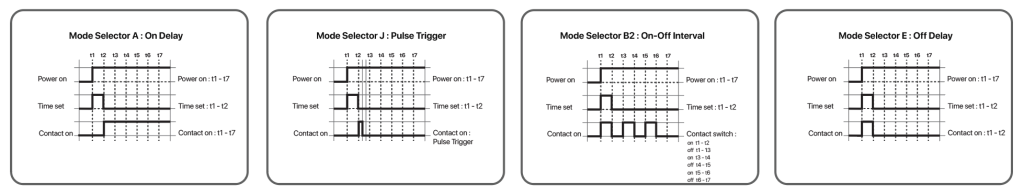

Time - chart
