SD-BD-04-01/Rev.10/29-03-67
TIMER SWITCH (NTS)
TIMER SWITCH (NTS)
Features
• Time switch with power reserve
• Nominal rated voltage at 230V ±10%
• 24hour dial with 30min segment
• Manual over ride ON/OFF switching
• Permanent ON/OFF switching
• Snap on fixing for 35mm DIN rail (EN50022)

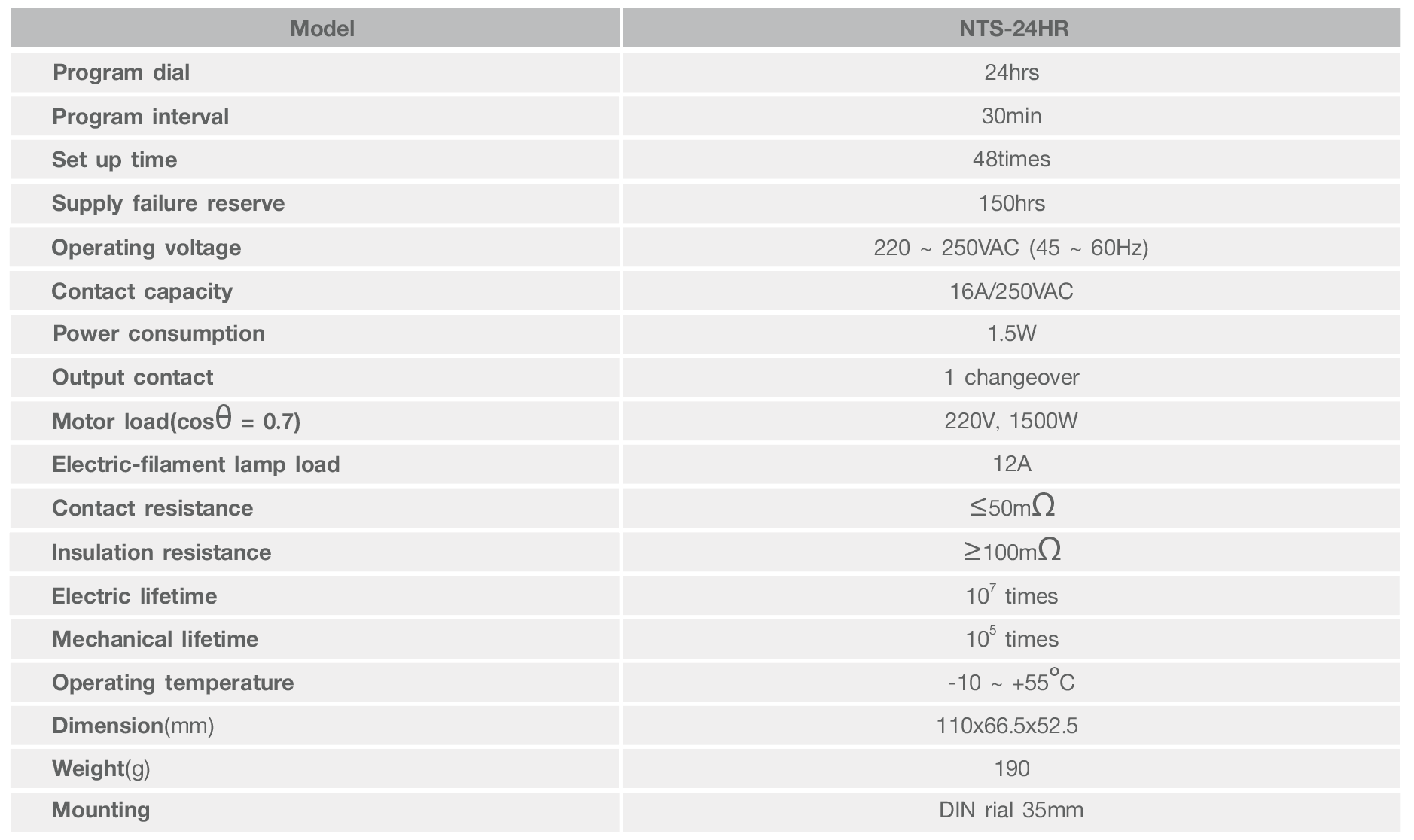

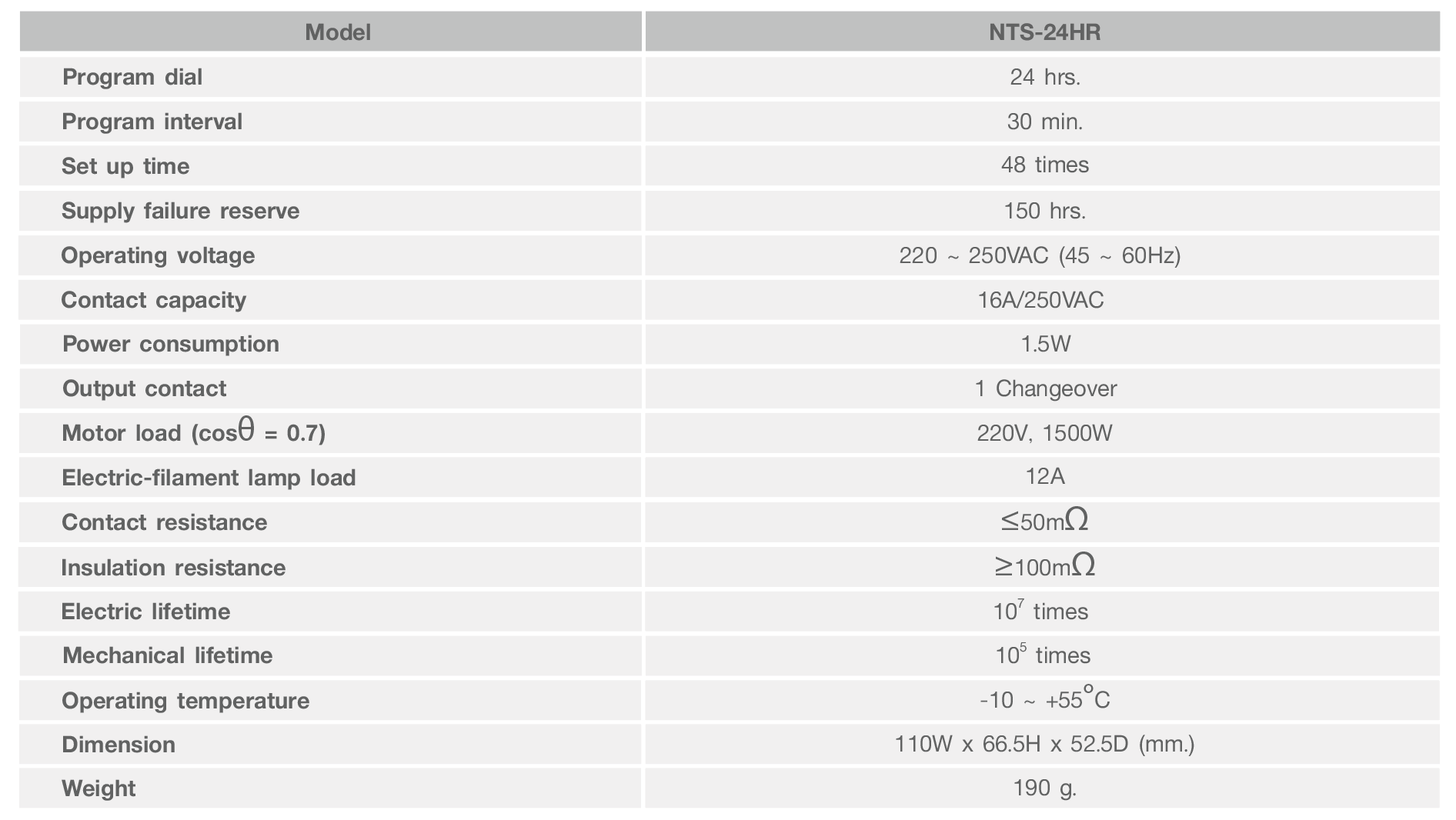

Technical data

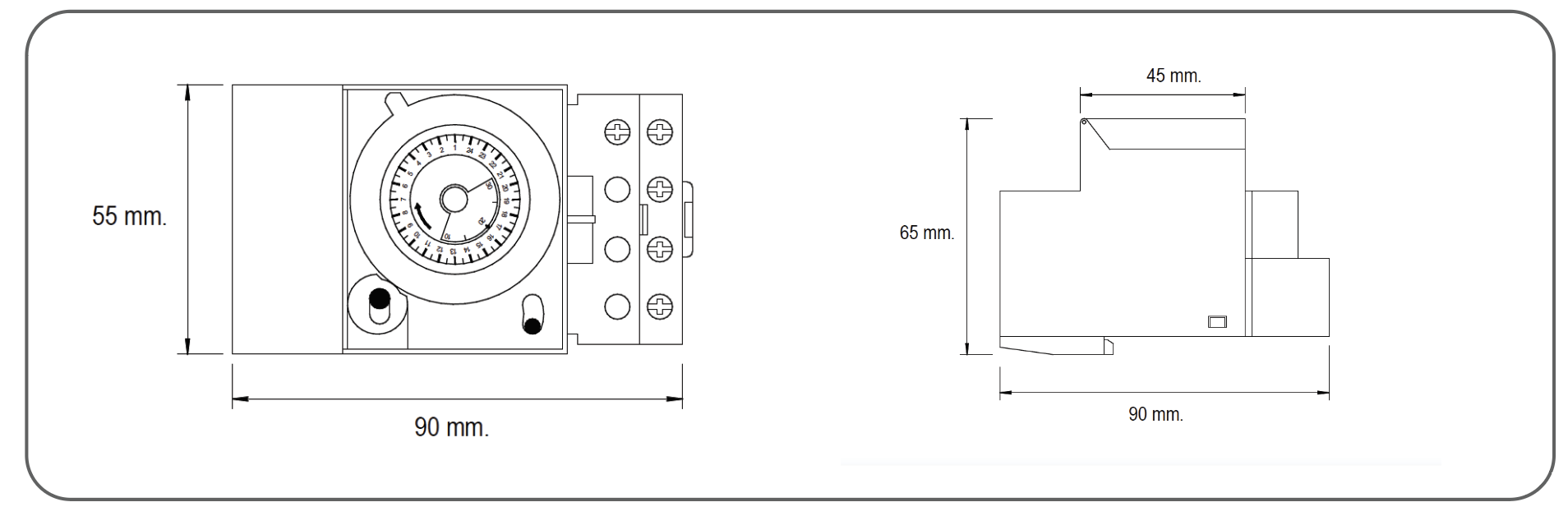

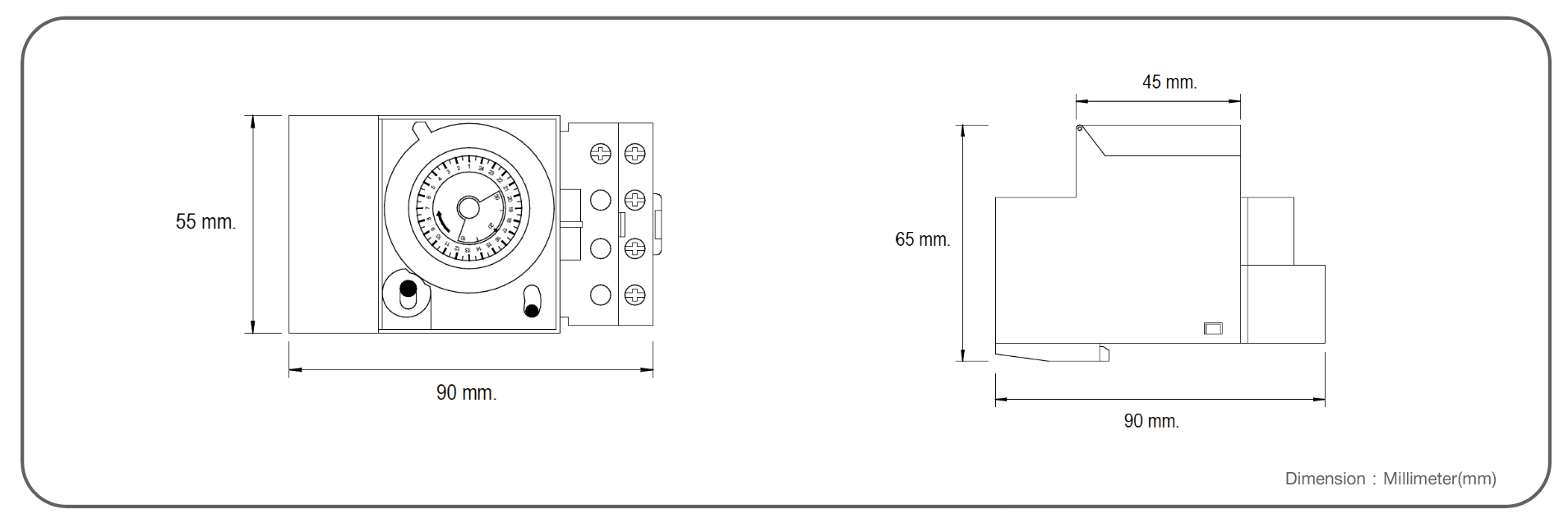

Dimension
