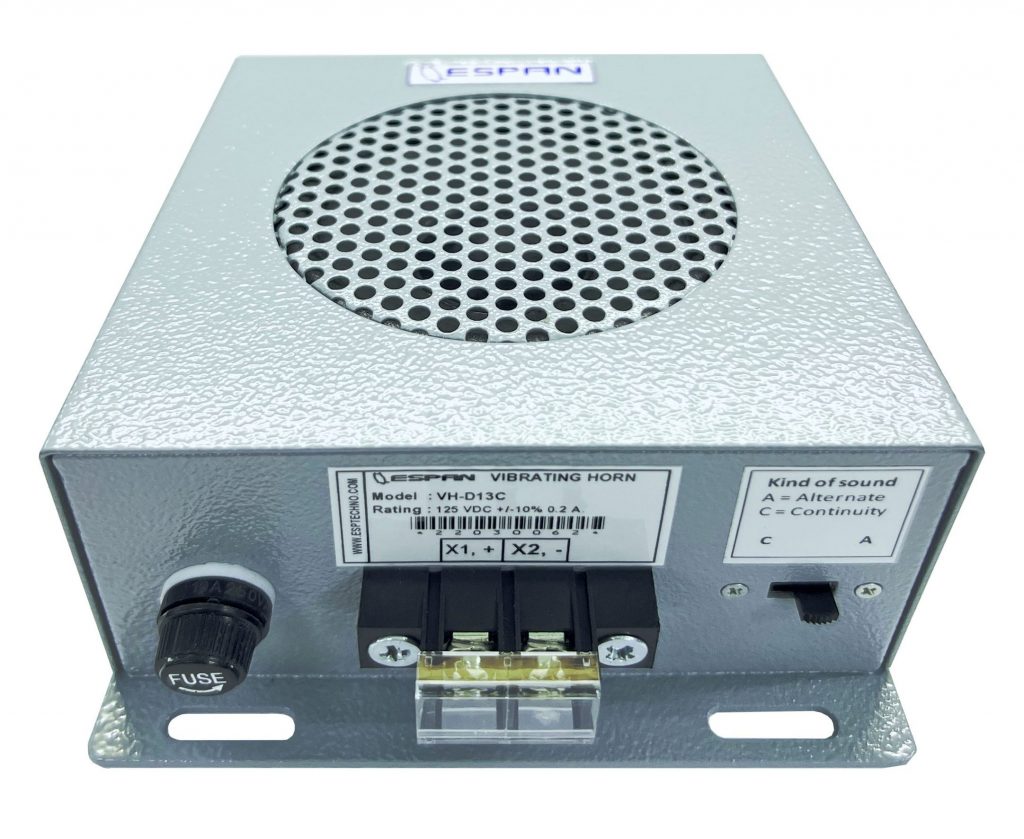

UNIVERSAL VIBRATING HORN (VH)
UNIVERSAL VIBRATING HORN (VH)

Description

         High decibel universal vibrating horn for heavy – duty and indoor application use. This device operates from a local power source which makes it possible in a system to connect the device to power sources of different voltages.

         The ESPAN electro – mechanical vibrating horn is manufactured for general purpose alarm and warning applications. Installation is quick and simple by tightening the four screws onto panel boards. Applications include: panel boards, switchboards, ceilings and walls for building hallways, corridors and manufacturing sites.

Features

•     Complete assembled, rugged design

•     Universal power supply from 24 VDC to 48 – 240 VAC/DC

•     Low power consumption, only 5VA (maximum)

•     Corrosion resistant finish (Epoxy Resin Color)

•     Wide operating range: -10% to +10% of nominal input voltage

•     Fuse protection in case of overload

•     Kind of sound by selector switch: C = Continuous sound, A = Alternate sound

•     Continuous duty time: 105 minutes

•     Weight 1.11 kg.

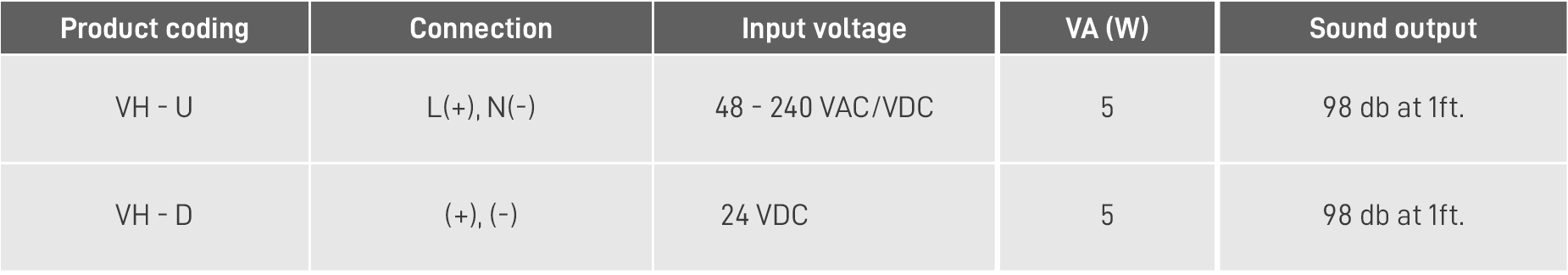

Technical Data

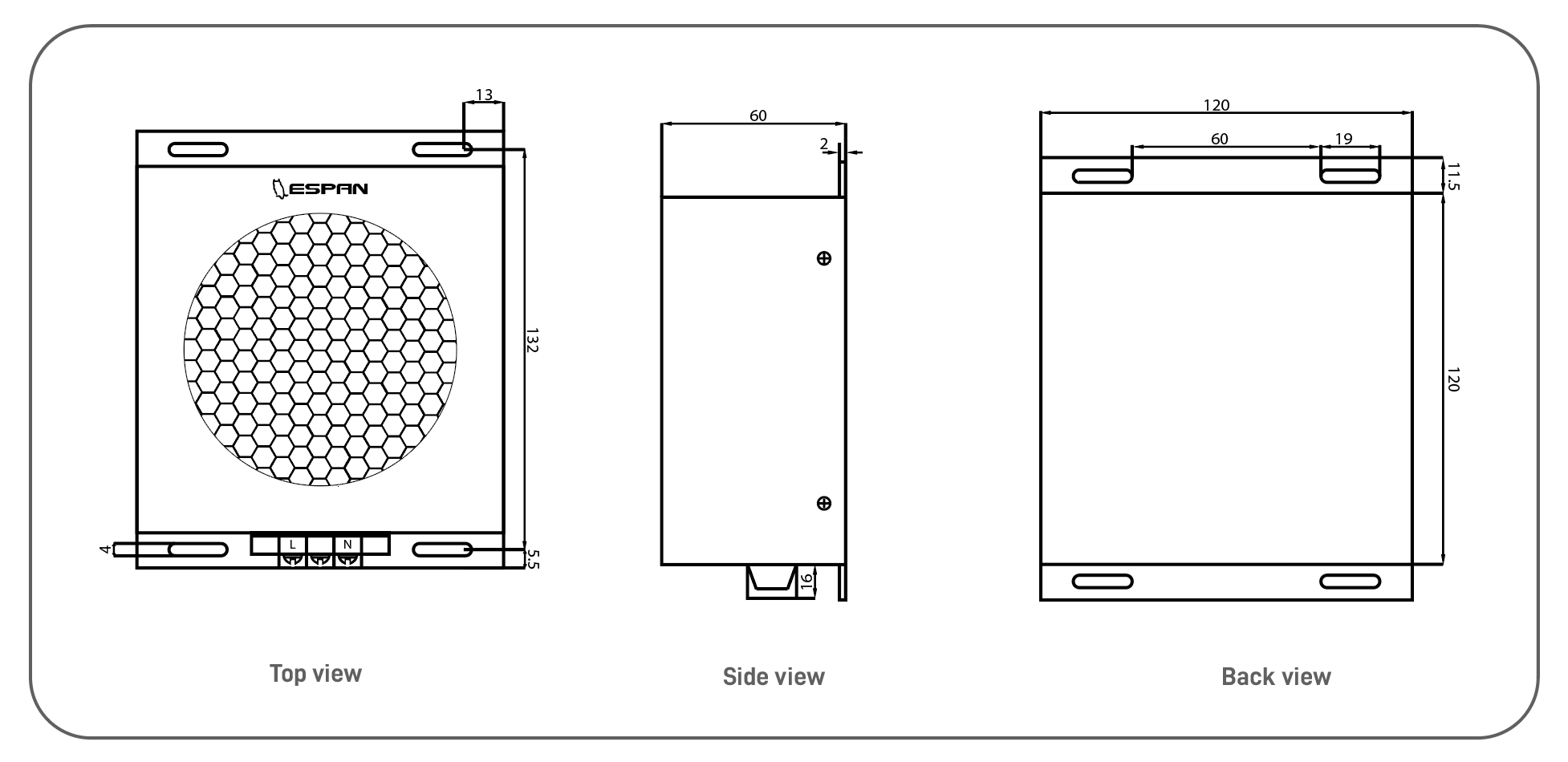

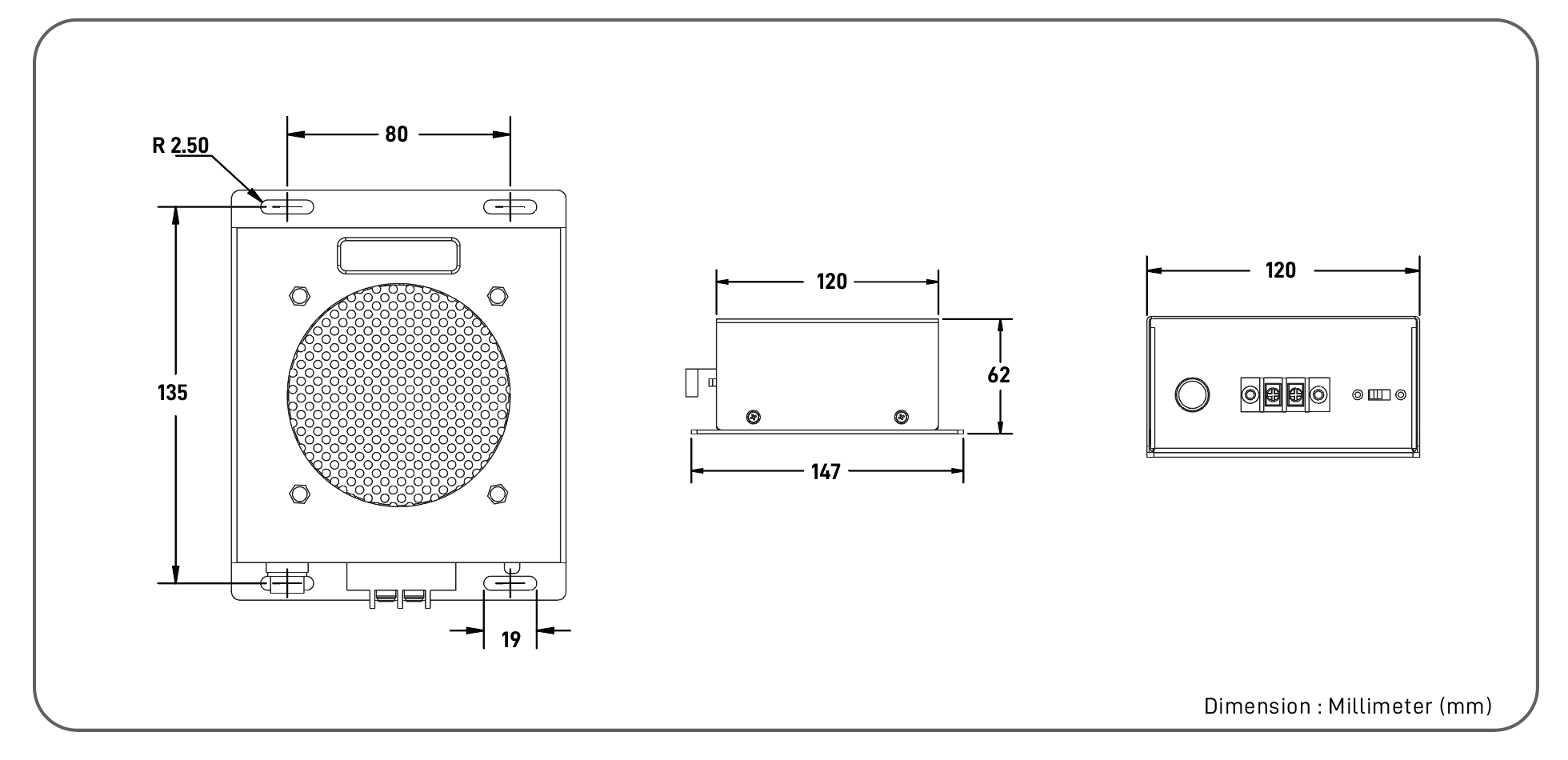

Dimension

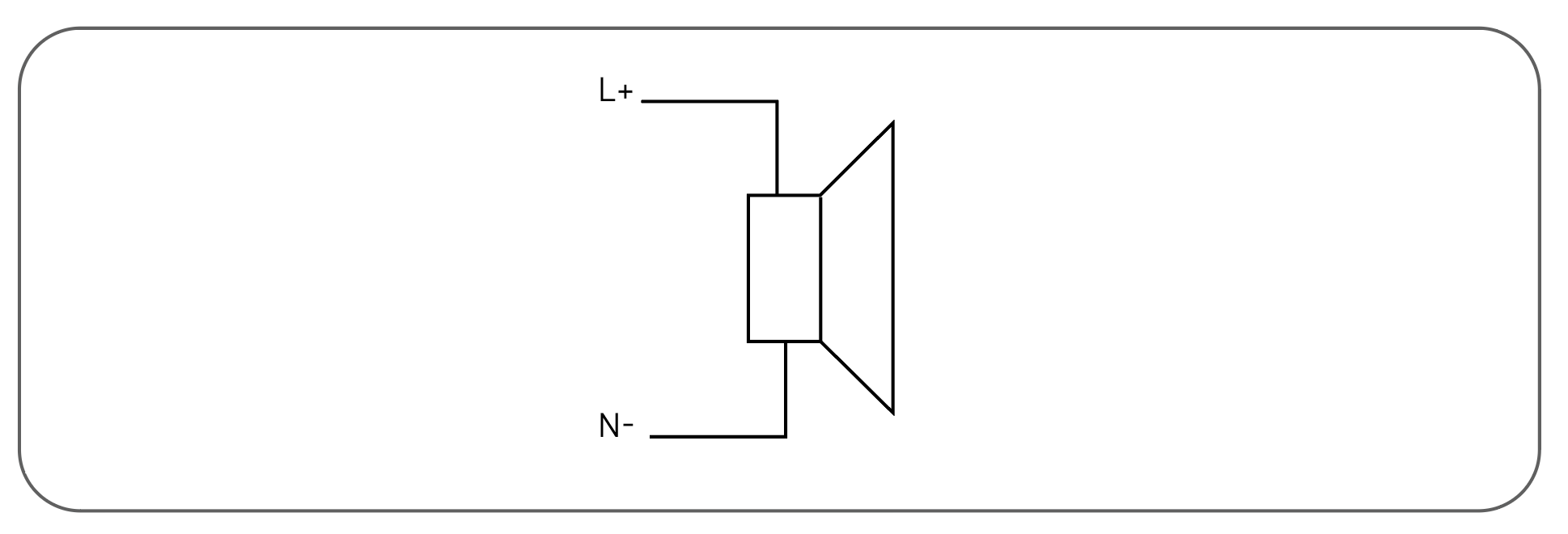

Wiring Diagram

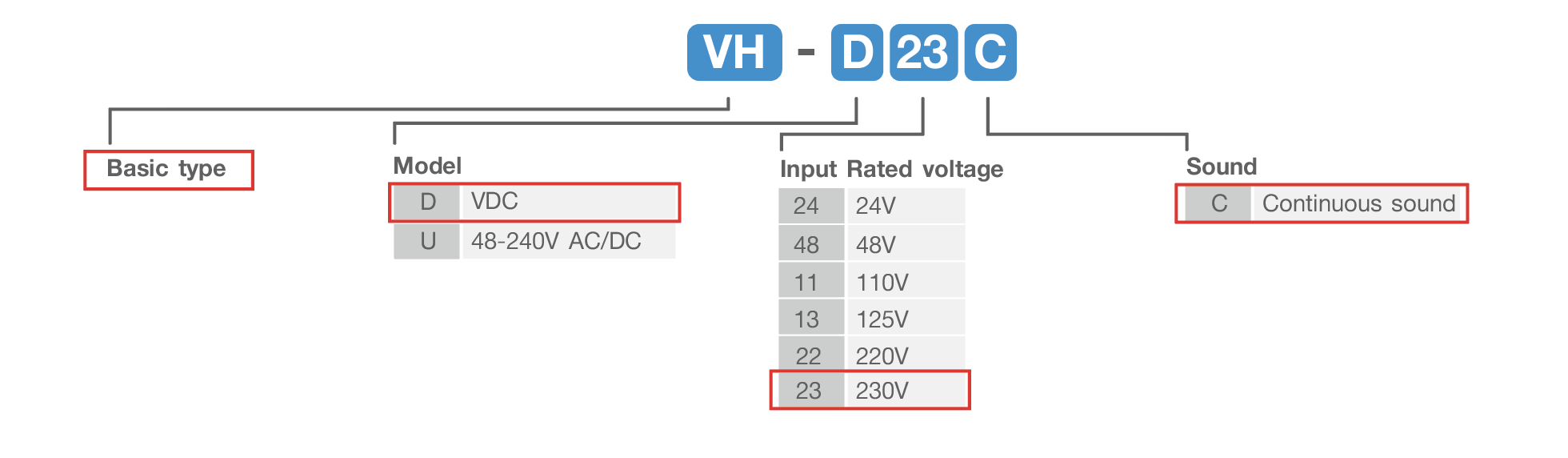

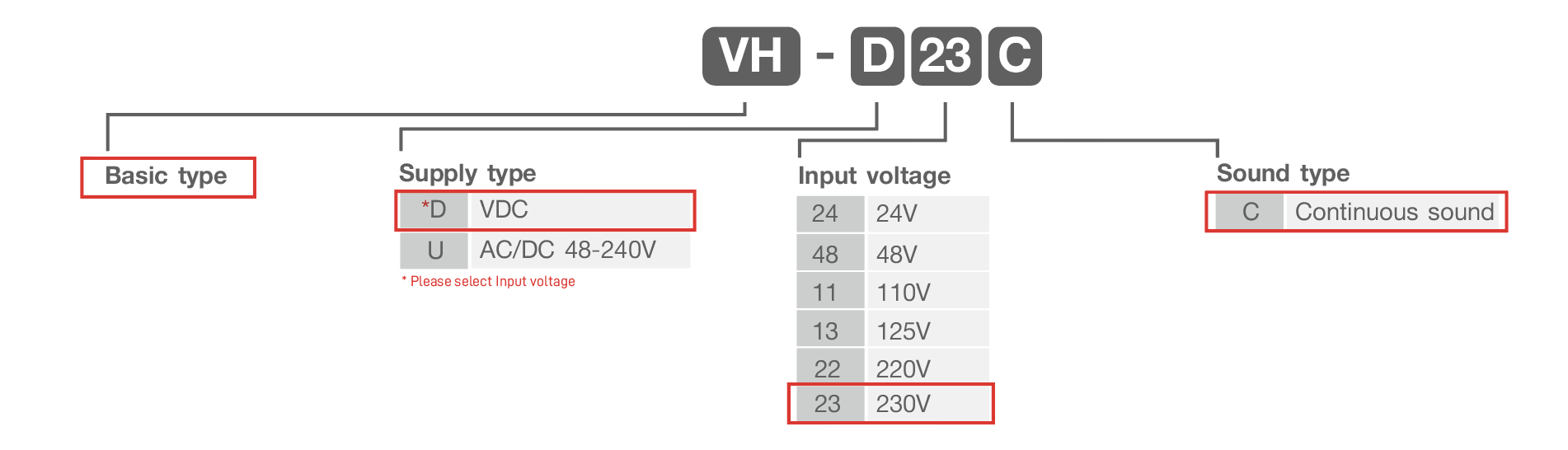

Product coding
