UNIVERSAL VIBRATING HORN (VH)

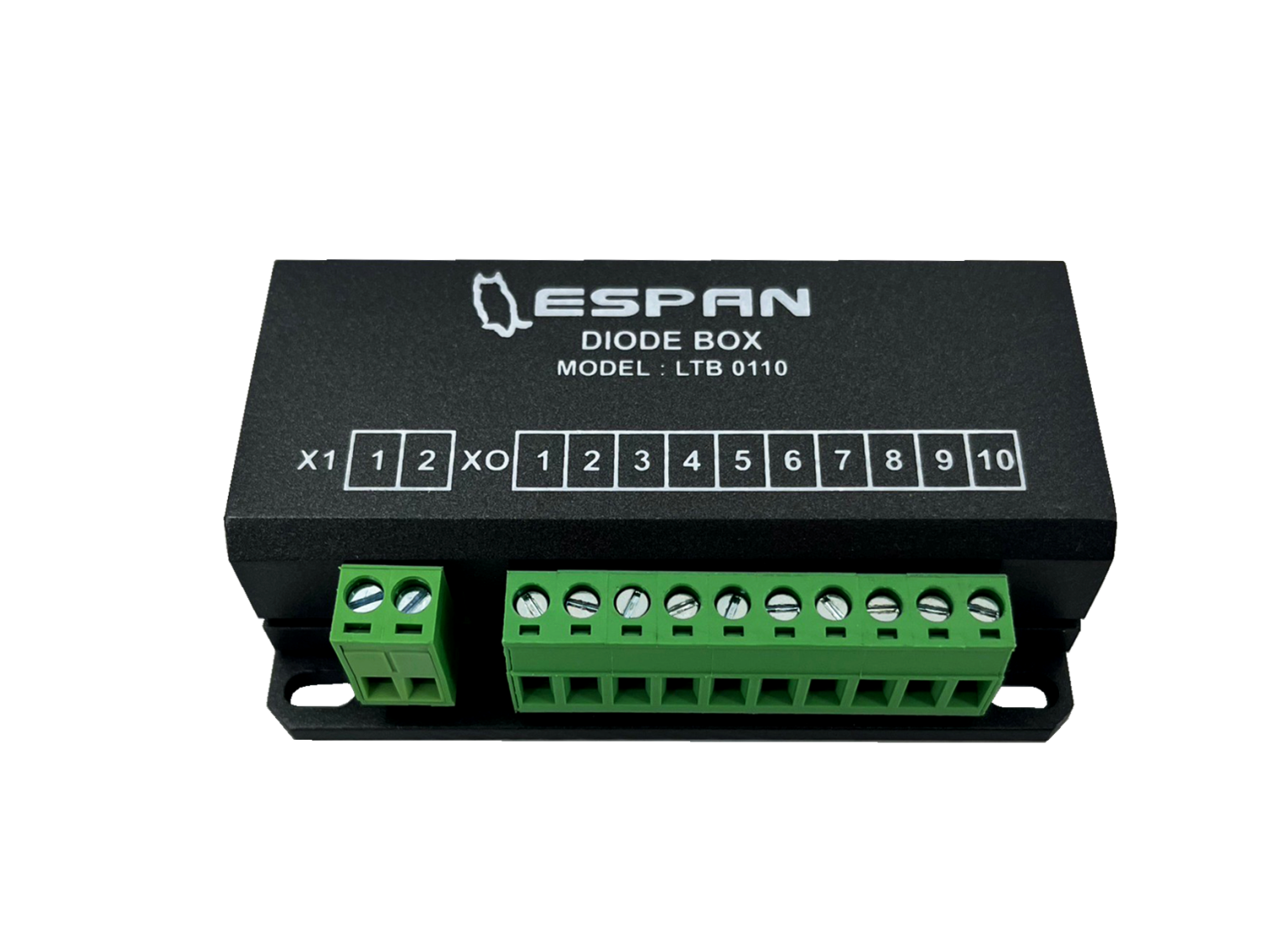

DIODE BOX (LTB0110)
Description
Diode box is use for rectifier, polarity reverse protect, suppressor spike voltage from DC relay coil (Back EMF), blocking DC volt, bypass DC volt etc. Safety from electric shock and easy to install with surface mount. High current circuit, 1A or 3A (Specify when order).
Features
• 10 chanels of diode
• High current circuit (1A or 3A)
• Low forward voltage drop
• High surge current duration
• High reliability and stability
• Easy install with surface mount

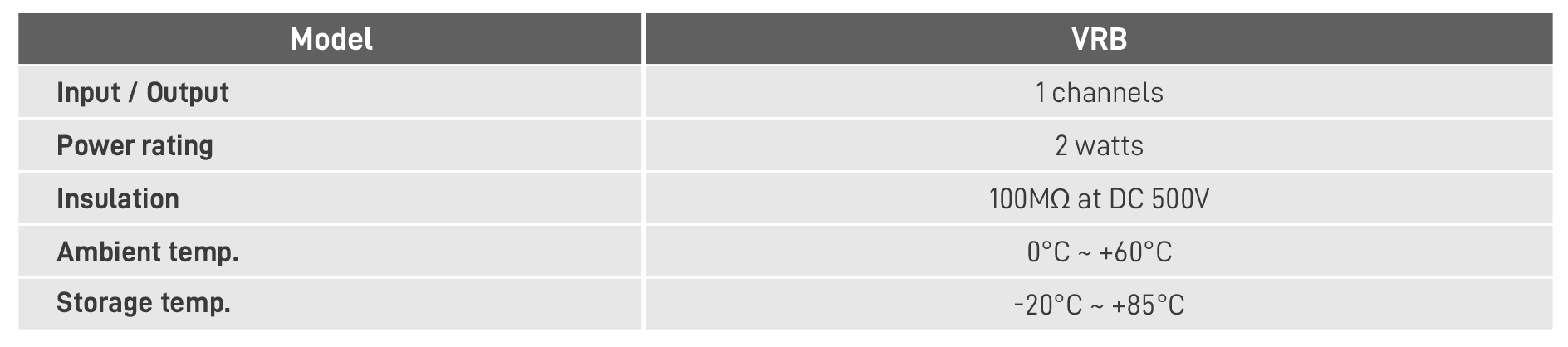

Technical Data

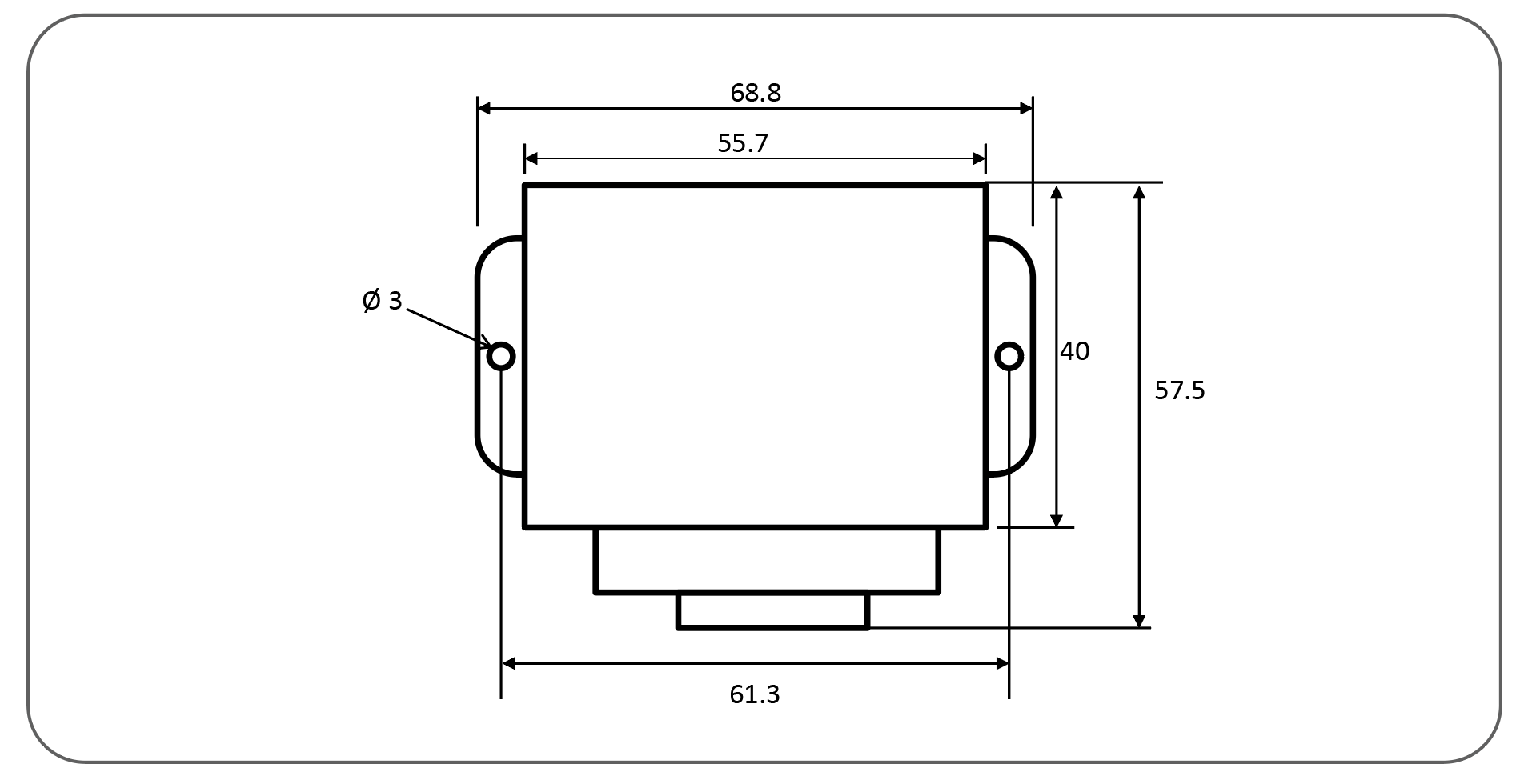

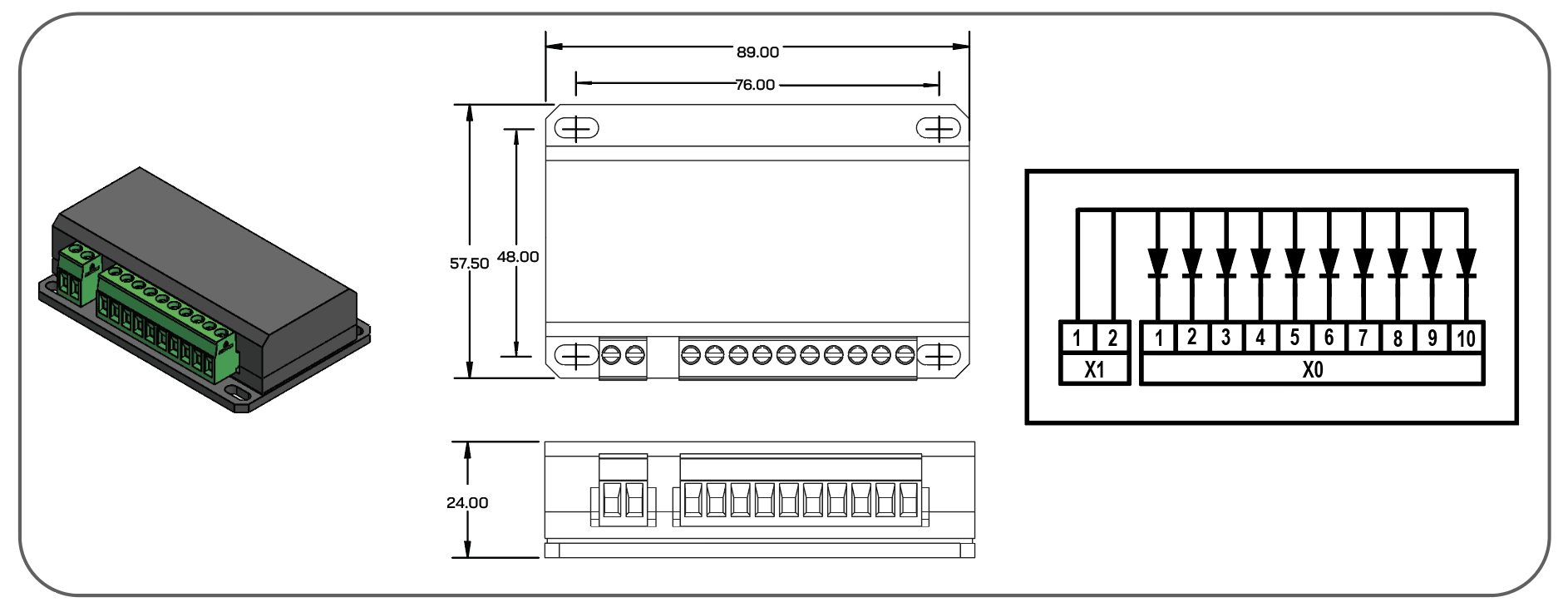

Dimension

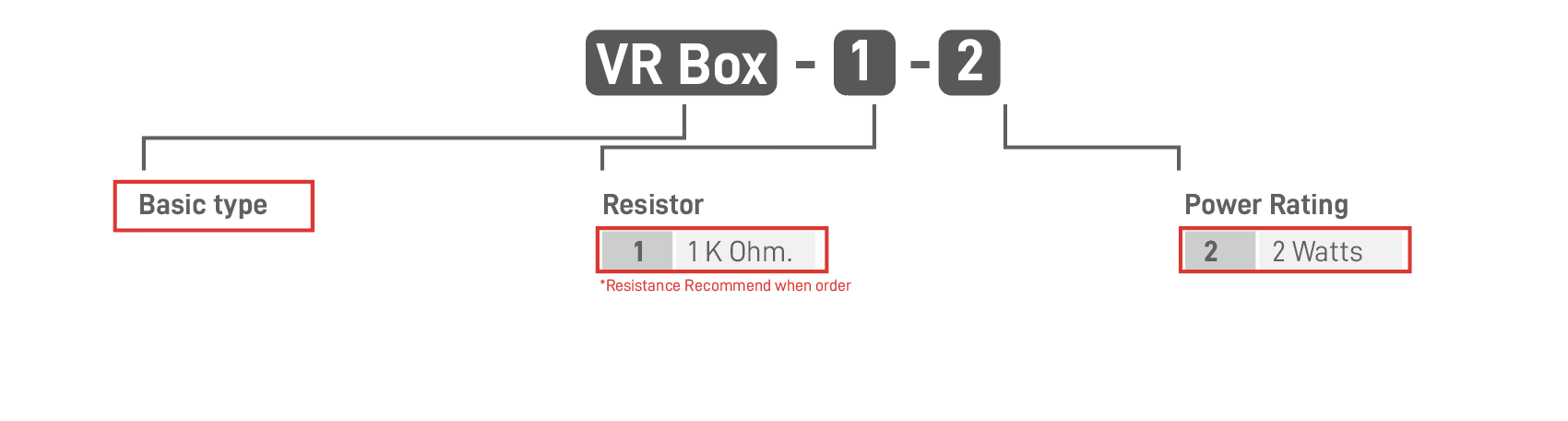

Product coding
